Baseline BIMS Digital 3 Piece Hand Evaluation Kit

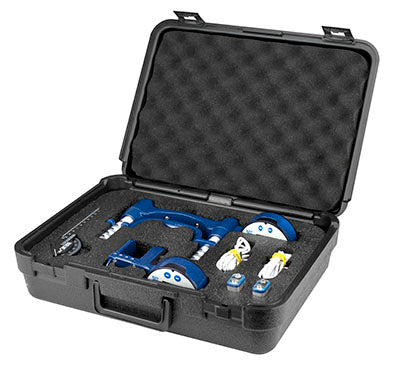

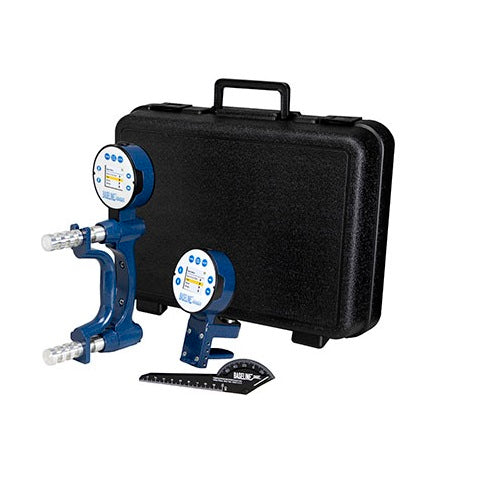

The New Baseline BIMS Digital 3 Piece Hand Evaluation Kit has everything a practitioner or health professional needs for testing hand grip strength, pinch strength and range of motion. Each Baseline BIMS Evaluation Kit includes a Baseline BIMS Load Cell Hand Dynamometer, Baseline BIMS Load Cell Pinch Gauge, Baseline 15cm Plastic Finger Goniometer and Padded Carry Case.

The New Baseline BIMS Hand Dynamometers offer greater accuracy and reliability than the standard hydraulic versions at a more cost effective price. The Baseline BIMS Digital Dynamometers have a unique full color LCD Display and use start of the art load cell technology so are hydraulic oil free, have no moving parts prone to breaking. Unlike other digital hand dynamometers the BIMS Dynamometers have a rechargeable 9V Battery.







BIMS Functional 3 Piece Evaluation Kit Features:

  • Standard Digital Hand Dynamometer
  • Standard Digital Pinch Gauge
  • Load Cell Technology
  • Accuracy Within +/-1%
  • Full Colour LCD Display
  • 135kg Hand Strength Capacity
  • 45kg Pinch Strength Capacity
  • Strength Readings
  • Max Force
  • Includes Plastic 15cm (6") Finger Goniometer, Instructions, Rechargeable Battery & Padded Carry Case



BIMS Clinic 3 Piece Evaluation Kit Features:

  • Clinic Digital Hand Dynamometer
  • Clinic Digital Pinch Gauge
  • Load Cell Technology
  • Accuracy Within +/-1%
  • Full Colour LCD Display
  • 135kg Hand Strength Capacity
  • 45kg Pinch Strength Capacity
  • Strength Readings
  • Max Force
  • Quick Test (Live, Real Time & Maximum Value)
  • General Strength Test (Peak Reading, Mean, SD & COV)
  • 1000 Patient Memory
  • Bluetooth Enabled
  • Includes Plastic 15cm (6") Finger Goniometer, Instructions, Rechargeable Battery & Padded Carry Case



BIMS Deluxe Hand Dynamometer Features:

  • Deluxe Digital Hand Dynamometer
  • Deluxe Digital Pinch Gauge
  • Load Cell Technology
  • Accuracy Within +/-1%
  • Full Colour LCD Display
  • 135kg Hand Strength Capacity
  • 45kg Pinch Strength Capacity
  • Strength Readings
  • Max Force
  • Quick Test (Live, Real Time & Maximum Value)
  • General Strength Test (3 Strength Trails - Peak Reading, Mean, SD & COV)
  • Rapid Exchange Test (6 Strength Trails - Peak Reading, Mean, SD & COV)
  • Modified Maximum Voluntary Effort Test
  • Maximum Voluntary Effort Test
  • Fatigue Test
  • 1000 Patient Memory
  • Bluetooth Enabled
  • Includes Plastic 15cm (6") Finger Goniometer, Instructions, Rechargeable Battery & Padded Carry Case

SKU: BASEBIMSKIT-1

Shipping calculated at checkout.

Similar Items

Sit and Reach Box
Activforce 2 Digital Muscle Tester Dynamometer & Inclinometer
Tri Balls Incentive Spirometer
Description
Technical Specifications
Videos
Brochures/Manuals
Warranty
Description

BIMS Digital Dynamometers Vs Standard Hydraulic Hand Dynamometers

  •  Force is measured using load-cell digital technology that gives more accurate, repeatable, consistent measurements
  • No hydraulic oil is used to measure force, eliminating the risk of oil leakage and decalibration
  • Resetting of max results is digital; standard hydraulic reset knobs are prone to breaking
  • LCD screen makes results easy to read
  • Saves time by calculating mean, SD, COV, and other statistics on the device



BIMS Load Cell Dynamometers Key Features:

  • Extended testing capacity (135kg - 300 lb grip & 45kg - 100 lb pinch) is designed for the strongest and weakest patients
  • Measures force consistently with ±1% accuracy
  • Color LCD display graphically shows results
  • Numerous testing protocols for advanced testing
  • 5-position hand grip accommodates different hand sizes and tests
  •  Results saved on device with memory for over 1,000 patients



Technical Specifications

BIMS Testing Protocols

  • Max Force Test: Just like a standard hydraulic dynamometer, this test shows live, real-time strength readings, and peak maximum values are held until digitally reset.

For the below tests, subject information can be inputted at the time of test: hand, handle/paddle position, exertion/rest times and test type. Results of each test can be saved for future reference.

  • Quick Test: Shows live, real-time strength readings and maximum value.
  • GST (General Strength Test): 3 strength trials are performed at a chosen handle position. Peak readings, mean, SD, and COV are calculated.

The following tests are only available with the Deluxe model. They are used for more advanced testing that is ideal for research applications, rehabilitation and workplace/occupational health functional capacity evaluation.

  • RET (Rapid Exchange Test): 6 strength trials (alternating hands) are performed at the same chosen handle position. Peak readings, mean, SD, and COV are calculated.
  • MMVE Test (Modified Maximum Voluntary Effort): 10 strength trials are performed (alternating hands), 2 trials at each handle position. Peak readings at each position are calculated.
  • MVE Test (Maximum Voluntary Effort): 15 strength trials are performed per hand, three at each handle position. Peak readings, mean, SD, and COV are calculated.
  • Fatigue Test (Work): 1 extended time trial is performed. Results are used to compare strength exerted (total work performed) over 2 or more user-defined time periods. Segment work readings are calculated.

Videos
Brochures/Manuals


Baseline BIMS Dynamometer Brochure

Baseline BIMS Dynamometer Instruction Manual


Warranty

12 Months Warranty
