Description
Features:
- Redundant Transmissions- The RL system sends each start and finish up to 12 times. This insures that times never are missed.
- Wireless Sync- The RL system does not need any cable to synconize the system. The system synchronizes with the press of a button.
- Signal Strength Analysis- The RL Timer can display the radio signal strength of each start and finish.
- Multiple Channels- There are 32 independent channels which allow multiple systems to be used in close proximity without interference from other XS systems and radio devices.
- Multiple Power Settings- There are three transmition distance settings for: Slalom, Giant Slalom, and Downhill length courses. These power settings allow the user to customize where the units are on the hill.
- 3 Timing Programs- There are three different timing programs that enable the system to be customized to the needs of the racers. Click for a description of the programs.
- Exact Crystal Synchronization- With precise crystal matching, (+/-) 1/1000 second accuracy can be maintained from unit to unit for over 4 hours, over the full range of tempuratures experienced in skiing.
- Lifetime Frequency Recalibration- The RL system re-calibrates itself each time it is powered on, eliminating the need for future tune-ups.

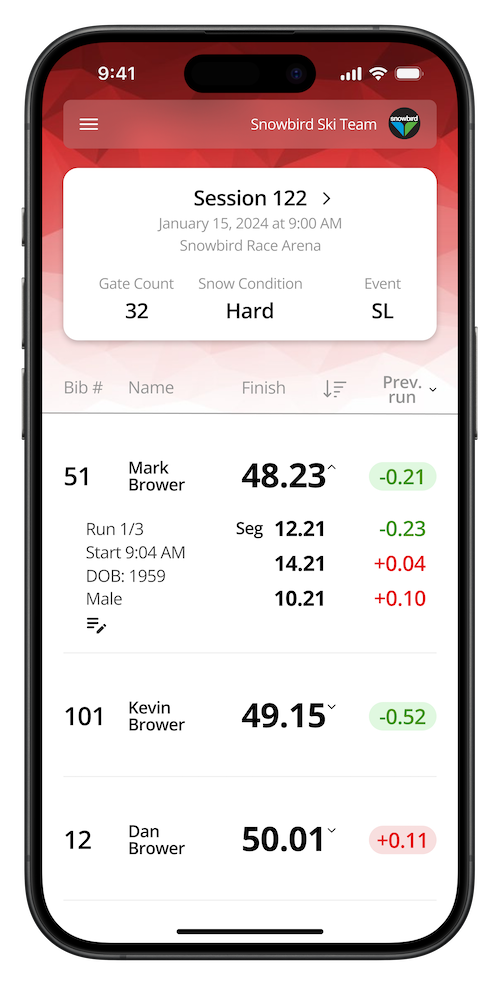

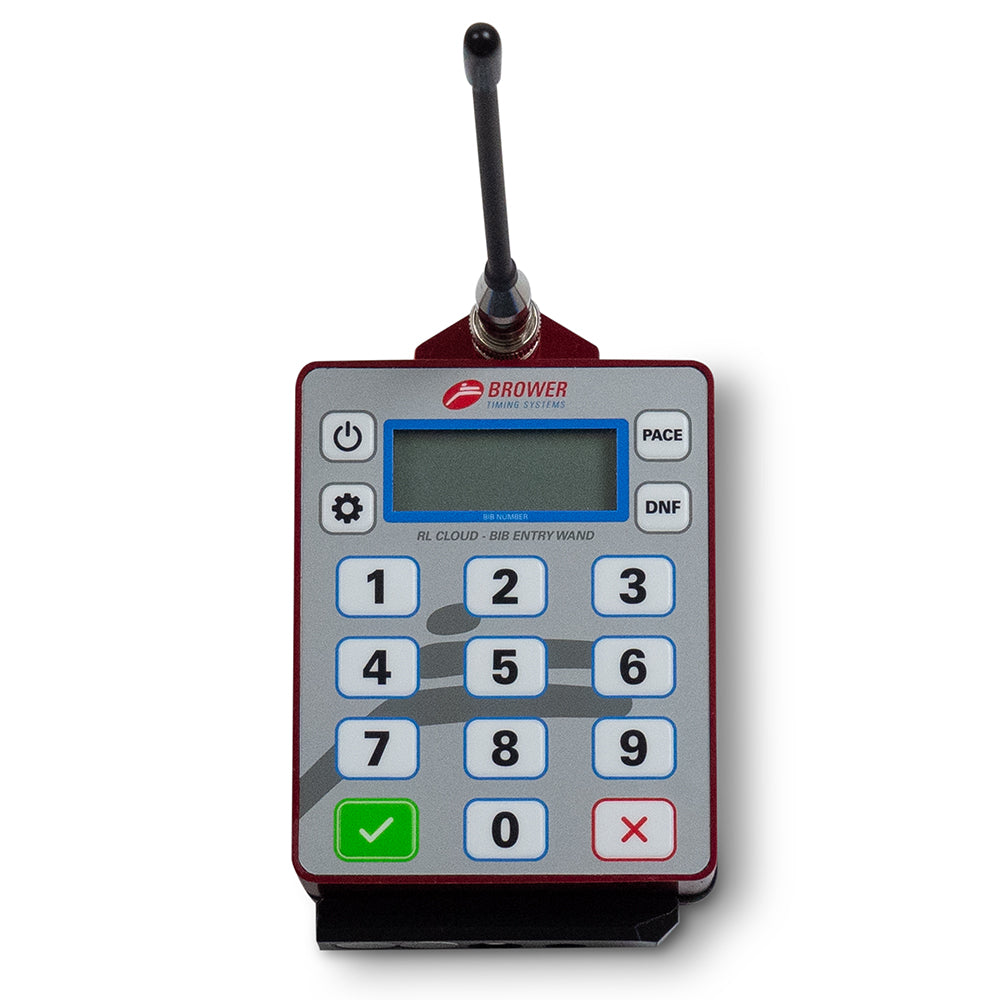

- Bib Number Tracking and Storage- Racer's times are displayed and stored by their bib number. Up to 2000 times can be stored on the system then downloaded to a smartphone with the Smartphone Interface.

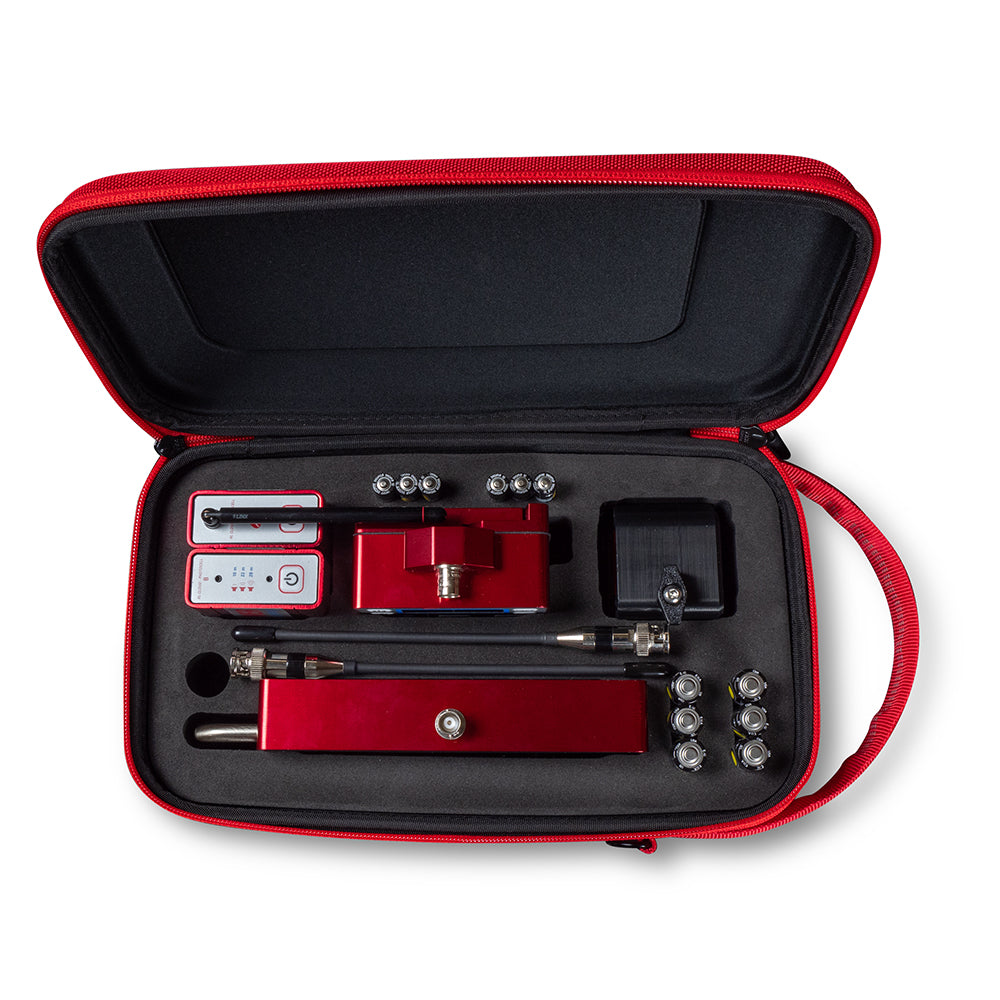

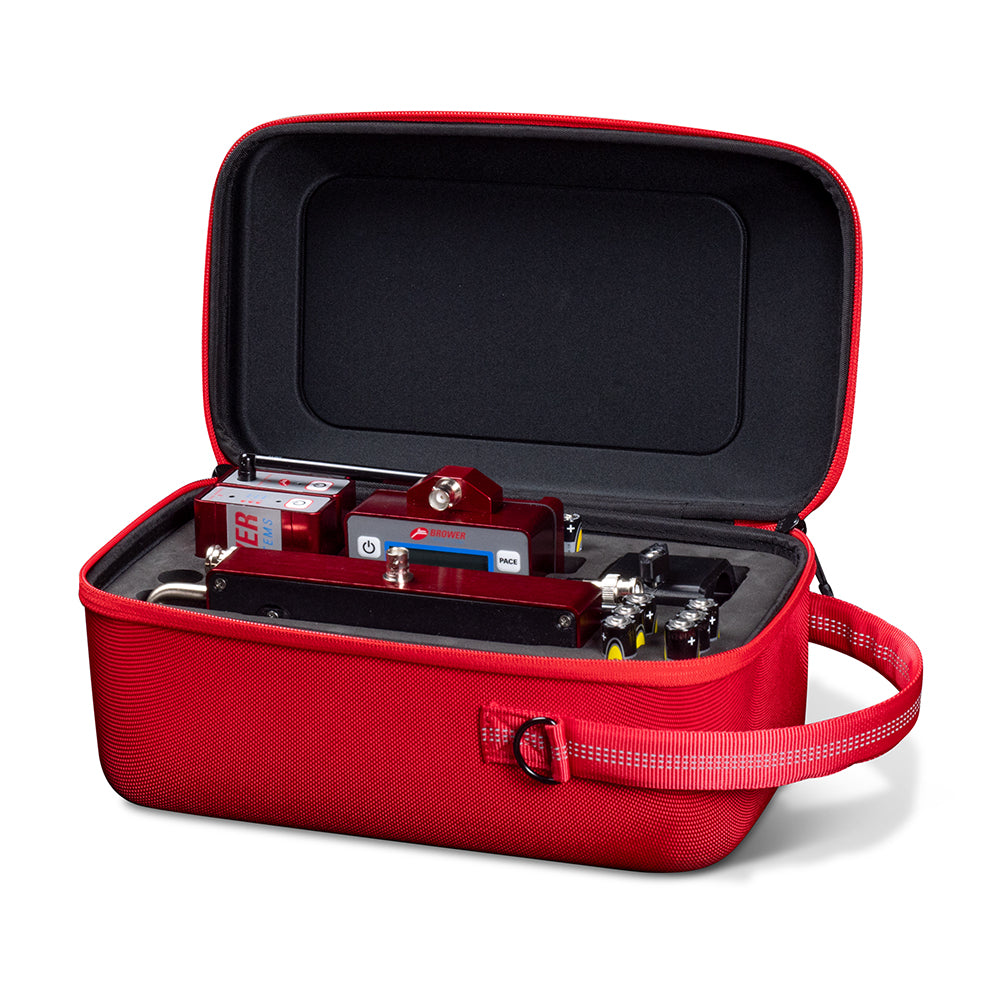

- Portable- The entire system weighs just 6 lbs. (3 kg.) and comes in a small lumbar pack.
- Extended Battery Life- The RL System runs on standard three AA alkiline batteries that last up to 200 hours undertypical use.
Technical Specifications
- RadioFrequency- 433.425 MHz, 25kHz spacing
- Modulation Method- FM.FSK. 32 Channels
- Temperature Rating- -20 degrees C
- Receiver Sensitivity- .18uV
- Transmitter Power- Low 10mW, High 135 mW
- Power Source- Three AA alkaline batteries
- Transmission Distance- 5 miles (8 km) line of sight
- Memory Capacity- 9999 Athlete ID’s, 2000 Run Memory.
- CE Certified- CE0408
- Weight- 6 lbs. (3 kg.)
