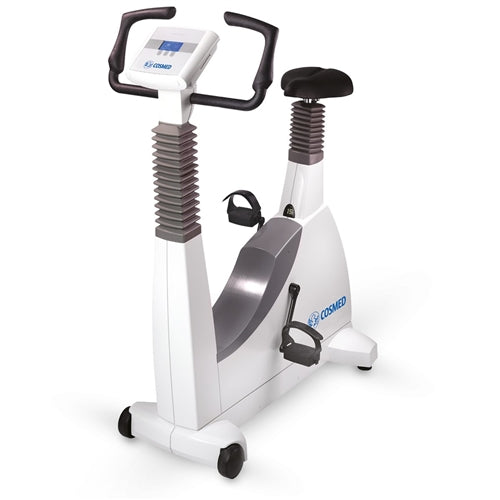

COSMED E100 Ergometer (Testing Bike)

COSMED E100 Ergometer (Testing Bike)

COSMED E100 Ergometer - Testing Bike For Cardio Pulmonary Exercise Testing &/or Stress ECG; Rehabilitation.

COSMED E100: Classic cycle ergometer for training and/or for cardiac and pulmonary exercise testing in private practice and clinical settings. Available in E100P or E100K Versions (K has Detailed LCD Graphic Display & Integrated Heart Rate Monitor).

COSMED ergometers outstanding safety, reliability and accuracy across the full range of workloads. The special ergonomic design provides performance enhancing seating position for all patients, irrespective of their height. The rugged mechanical construction guarantees outstanding safety and trouble-free operation at highest workloads.

All COSMED Ergoselect cycle ergometers include free programming of exercise protocols, intuitive operation and universal interfaces (digital, analog, remote start) for exercise testing in combination with gas exchange equipment (Fitmate Pro or Quark CPET) and/or stress test ECGs (Quark C12x/T12x).

These ergometers are fully modular providing maximum flexibility in configurating the ergometer with options such as adjustable cranks, racing saddle, pediatric saddle, automatic blood measurement and pulse oximetry.

COSMED E100 Specifications:

  • Main Application: Cardio Pulmonary, Rehabilitation & ECG Stress Testing
  • Integration: COSMED Gas Exchange Equipment; ECG Systems; E100K - Polar Heart Rate Monitoring.
  • Braking System: Electro-Magnetic
  • Adjustable Saddle: Manual Adjustment (120-210cm)
  • Handlebar Adjustment: Inclination (angle 360 degrees)
  • Pre Set Training Protocols: 5x
  • Available User Protocols: 10x
  • Dimensions: 94x46x133cm
  • Weight: 64kg
  • Maximum Patient Weight: 160kg
  • Load Range: 6-999 Watts
  • Speed Range: 30-130 RPM
  • Load Steps: 1 Watt
  • Accuracy: 3% +/- 3 W
  • Display LCD: 128x64 (P Model); Graphic 320x240 (K Model)
  • Interface: RS232, Analog
  • Power Supply: 100-240V, 50/60 kHz
  • Country of Origin: Made In Italy

Optional Accessories (Sold Separately)
  • Adjustable Cranks
  • Racing/Pediatric Saddles
  • Blood Pressure Monitor
  • SpO2 Monitor
  • ECG Amplifier
