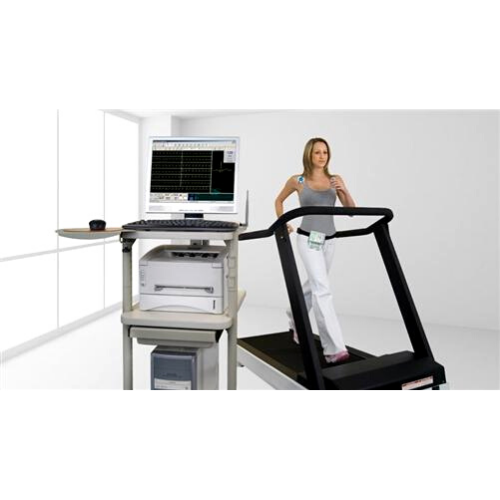

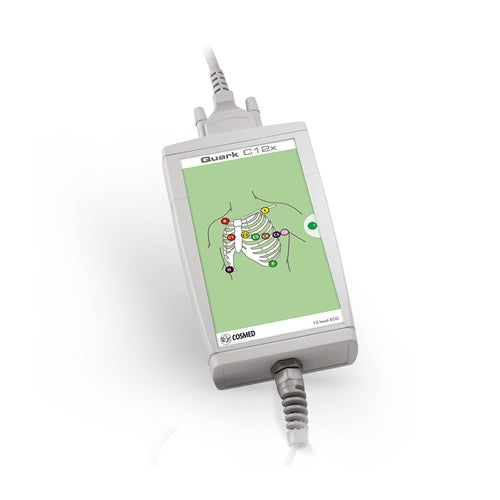

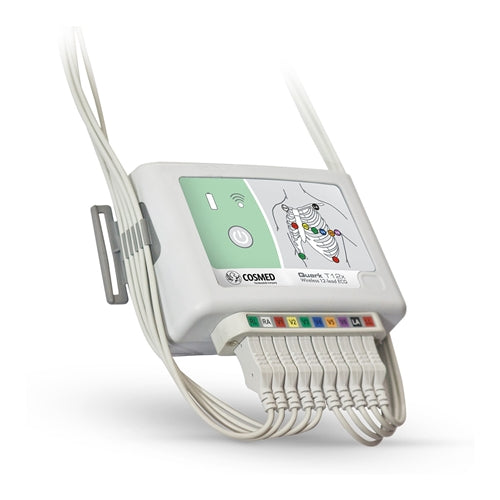

COSMED Quark C12x/T12x - 12 Lead Patient Cable or Wireless Stress Test ECG (With COSMED Compatible T150LC Performance Treadmill)
Electrocardiographic (ECG) recording system for continuous monitoring of heart rhythm and evaluation of ischemic ECG changes during exercise & recovery.
COSMED Stress ECGs are the ideal diagnostic quality PC-based ECG devices for patient care from prevention to rehabilitation. Ultimate quality ECG signal allows an efficient diagnosis of coronary artery disease, the evaluation of patients after artery bypass surgery or angioplasty, and allows to document response to therapies and prevent from myocardial infarction.
Combined with any COSMED gas exchange analysis equipment, COSMED Stress ECGs become the complementary tools that help clinician to quantify patient’s functional capacity and evaluate cardiac response in athletes.
COSMED PC-based stress testing systems offer the ultimate in stress testing flexibility, meeting the most advanced requirements for clinical exercise testing.
COSMED Quark C12x/T12x ECG Features:
Resting & Exercise ECG Interpretation
High Resolution ECG Processing
Full Disclosure & Scroll Back During The Test
St Segment, St Slopes, Trends
Retrospective ECG & Arrhythmia Analysis Even During Test
Standard & User Defined Exercise Protocols
Integration With COSMED Gas Exchange Equipment (Fitmate Pro, Quark CPET Systems)
Patient Database & Network Compatibility

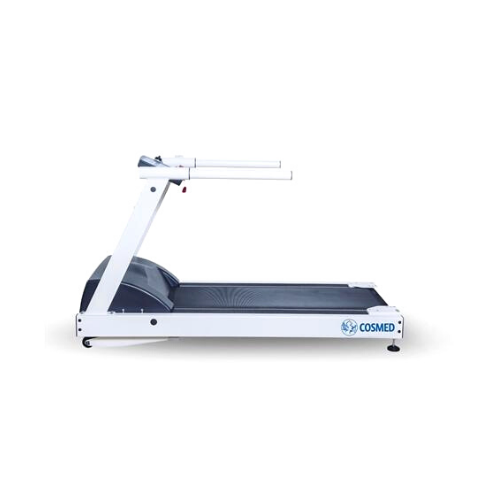

COSMED T150LC DE Specifications:
Main Applications: Cardio Pulmonary; ECG Stress Testing & Performance Testing.
Integration: COSMED Gas Exchange Equipment; ECG Systems.
Speed: 0-18km/h
Acceleration: 7 Levels
Elevation Range: 0-20%
Maximum Elevation: 0-11.3 Degrees
Maximum Patient Weight: 200kg
Motor System: 1 Phase AC Motor (Maintenance Free)
Motor Capacity: 2.2kW (3.0hp)
Motor Voltage: 200-240v
Running Surface: 150cm x 50cm
Belt: Durable Slip Resistance
Low Height Track: 23cm
Handrail Crossbar
Display: 6 LCD Displays; 4 LEDs for Operation Modes; 20 LEDs for Display of Units, Profile & Steps ect (Speed, Time, Elevation, Distance, METS, Program Step/Number, Energy, Fitness Index, Power & Heart Rate.
Emergency Stop: Button & Large Push Button
Programs: 40 (6 Exercise profiles, 26 Test protocols and 8 Definable programs)
Heart Rate: Wireless Polar Heart Rate Control Included
Connectivity: RS232 Com1; RS232 Com 3 & Com 4
Software: Para Control Included; Compatible With Fitmate Suite
Dimensions: Length 209cm x Width 86cm x Height 131cm
