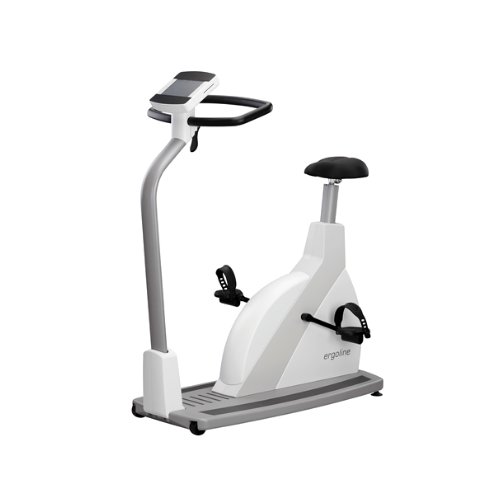

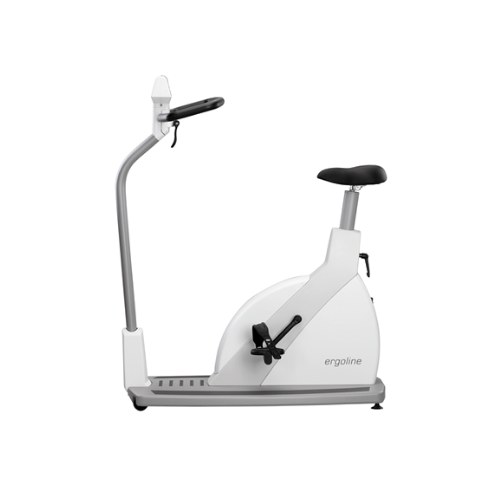

Ergoline Ergoselect 5 Ergometer (Testing Bike)
Ergoline Ergoselect 5 Ergometer (Testing Bike)
  • Load image into Gallery viewer, Ergoline Ergoselect 5 Ergometer (Testing Bike)
  • Load image into Gallery viewer, Ergoline Ergoselect 5 Ergometer (Testing Bike)

Ergoline Ergoselect 5 Ergometer (Testing Bike)

Ergoline Ergoselect 5 - Ergometer for Exercise Testing, ECG Monitoring & Rehabiltation

The new high-quality, modular ergometer Ergoselect 5 combines state-of-the-art technology and exclusive design into a convincing overall concept. The medical high-performance ergometers of the ergoline 5 series stand for the highest quality, full commitment to user needs, and limitless functionality. The Ergoselect 5 Ergometer is characterized by its wide, open step-through frame, extremely low access height, and solid aluminium platform.

High-Quality Aluminum Base Plate
The massive aluminum platform guarantees a high level of stability, while the non-slip inlays ensure additional patient safety.

Easy Access
The broad open step-through frame and low entry height facilitate access to the ergometer, especially for older or disabled patients.

Stable Up to Patient Weights of 200 kg
Thanks to the seat height adjustment with gas spring or motor, patients weighing up to 200 kg can safely undergo ergometric examinations.

Whisper-Quiet Drive Technology
The 2-stage belt drive of the load unit, specifically developed by ergoline, guarantees quiet and slip-free operation – even at high loads.

Comfortable, Secure Handlebar Clamping
The ergonomic, closed handlebar has a wide adjustment range and thus offers the optimal grip position for every patient. The convenient clamp lever securely locks the handlebar in place.

Control Display P (Ergometry)
The control terminal P, in addition to control via PC-based ECG system or ECG recorders, enables the performance of exercise protocols in stand-alone mode (10 freely programmable protocols) as well as the manual operation of the ergometer. All relevant parameters are shown on the easily readable, illuminated LCD display during the exercise test.

Integrated SpO2 measurement (Optional Attachment)
The ergometer can be equipped with an SpO2 measurement module for precise monitoring of the patient’s oxygen saturation during ergometric testing. A wide selection of suitable SpO2 sensors is available in different sizes.

Automatic blood pressure measurement (Optional Attachment)
The optionally integrated, automatic blood pressure measurement works with a specifically developed cuff microphone. The combination of auscultatory measurement and sophisticated algorithms for artifact suppression yields precise measurement values – even at high loads.

Seat Adjustment with Gas Spring or Motor

Convenient variants for the mechanical adjustment of the seat height can be integrated. Options include gas spring assisted, stepless or motor-assisted electrical seat height adjustment to facilitate the frequently problematic access to the ergometer, especially for older or disabled patients. The adjustment can easily be made by using the keys on the control terminal.

Motor-Assisted Adjustment of Handlebar Height

The handlebar and seat position can be precisely adjusted to the respective patient for special applications (for instance, performance diagnostics, rehabilitation).

Horizontal Saddle Adjustment
The adapter enables horizontal shifting of the saddle by approx. 120 mm. In conjunction with the adjustable pedal cranks and the dual handlebar adjustment (height and tilt), this makes it possible to set the most ergonomically effective training position for every patient.

Pedal Cranks & Comfort Straps Adjustable
The length of the pedal cranks can be adjusted in a range from 12 to 17 cm. Extra-wide pedals with adjustable pedal straps (ratchet mechanism).

Two smooth casters in the front area make the ergometer a snap to move: Ideal for smaller medical practices and hospitals

ECG connection
The ergoline interface protocol is now considered the industry standard. All leading ECG manufacturers support a control option for ergoline ergometers in their exercise ECG or ergospirometry systems.

Universal interfaces
wide range of connection options guarantees reliable communication with external devices such as PC-based. In addition to the standard RS-232 and USB interface, we of course also offer wireless connections via Bluetooth or WiFi.

Ergoline Ergoselect 5 Specifications:

  • Main Application: Cardio Pulmonary, Rehabilitation & ECG Stress Testing
  • Integration: Gas Exchange Equipment (VO2) & ECG Systems
  • Braking & Drive System: Electro Magnetic Two-stage brake system with special drive belts
  • Adjustable Saddle: Gas Spring & Horizontal Adjustment Up to 120mm
  • Handlebar Adjustment: Rotating (360 degrees) With Secure Clamping
  • Pre Set Training Protocols: 5x (WHO, BAL, Hollmann, STD etc)
  • Available User Protocols: 10x
  • Dimensions: 101x49x127cm
  • Weight: 69kg
  • Maximum Patient Weight: 200kg
  • Load Range: 6-999 Watts
  • Speed Range: 30-130 RPM
  • Load Steps: +/– 1, 5, 10 or 25 Watts (Manual Load Control)
  • Accuracy: Complies with DIN VDE 0750-238
  • Display LCD: 93 x 70 mm LCD/128 x 64 pixels and 7-segment RPM display
  • Display Readout: Load, Speed (rpm), Time; Optional: Blood pressure, Heart rate
  • Interface: RS232, USB (optional wifi & bluetooth)
  • Power Supply: 100-240V, 50/60 kHz
  • Country of Origin: Made In Germany

Optional Accessories:

  • SPO2 Module
  • BP Module
  • PC & ECG Cart
