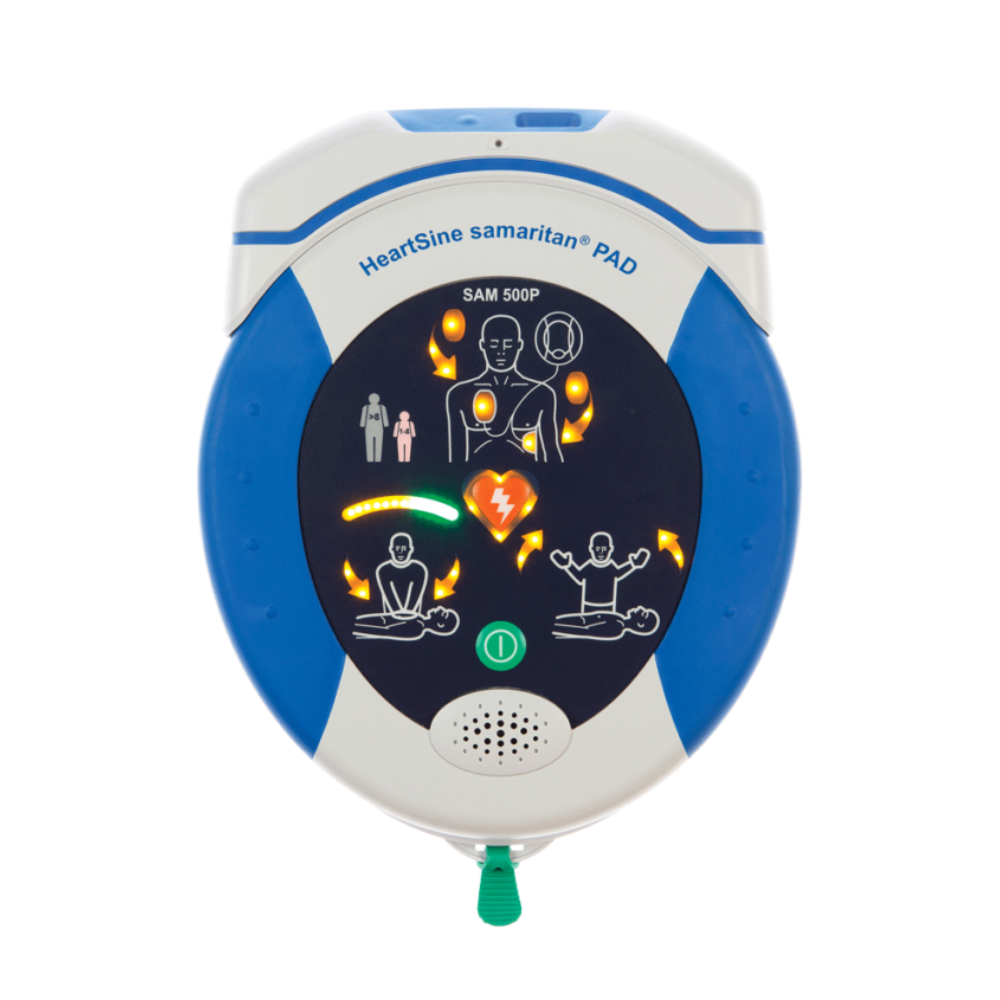

HeartSine Samaritan PAD 500P Semi Automatic AED With CPR Advisor

HeartSine Samaritan PAD 500P Semi Automatic AED With CPR Advisor

When every second counts in a sudden cardiac arrest emergency, you need an AED that you can count on. Integrated Wi-Fi connectivity, enabled by HeartSine Gateway, helps ensure the compact HeartSine samaritan AED will be ready when it’s needed. In addition to delivering a lifesaving shock, the AED also provides real-time feedback to help the rescuer perform effective CPR.


Shipping calculated at checkout.

Request Quote

Technical Specifications

A lifesaving combination

When someone collapses from sudden cardiac arrest, time is of the essence. Reducing response time by even one or two minutes from collapse to AED shock can mean the difference between death and survival.1 Offering real-time CPR feedback, the HeartSine samaritan PAD 500P with integrated CPR Advisor gives rescuers real-time visual and verbal feedback on the force and rate of CPR compressions. Quality CPR and a lifesaving shock are two key links in the chain of survival.

HeartSine Connected samaritan PAD 500P with CPR Advisor

The semi-automatic HeartSine samaritan PAD 500P, available with or without Wi-Fi connectivity, helps rescuers deliver a lifesaving shock while also providing real-time visual and verbal feedback on the force and rate of CPR compressions—assisting the rescuer to perform more effective CPR.

Readiness made easy.

HeartSine connected AEDs use the power of Wi-Fi to provide remote readiness information and communicate outcomes of weekly self-tests for every AED in your fleet― reducing the expense and effort needed to manage your AED program.

Remote monitoring.

AED not ready? Electrodes and battery out of date? LIFELINKcentral AED program manager monitors each HeartSine AED connected to a Wi-Fi network and alerts you to matters that may affect device readiness ― all automatically.

Integrated real time CPR feedback.

Clear visual and voice prompts guide the rescuer through the entire resuscitation process, providing specific feedback on the force and rate of compressions.

CPR feedback without additional requirements.

HeartSine’s CPR Advisor technology detects, via the defibrillator electrodes, the force and rate of CPR being provided, without the need for accelerometers or pucks.

Improve CPR delivery.

When no CPR is detected, continuous voice prompts help to improve hands-on time for CPR delivery.

Highly portable.

Smaller and light at just 1.285 kg, the AED’s small compact footprint accommodates limited space in an office, plane or vehicle.

Clinically validated technology.

SCOPE biphasic technology, a low-energy escalating waveform that automatically adjusts for patient impedance.

High level of protection from dust and water.

An IP56 rating offers one of the highest ratings in the industry for protection against dust and water.

Low cost of ownership.

HeartSine defibrillators come with the practical Pad-Pak ― an integrated battery and electrode single-use cartridge with one expiration date, which simplifies AED maintenance. With a shelf life of four years from date of manufacture, the Pad-Pak may offer savings as it eliminates the need for separate battery and electrode replacements

Technical Specifications


  • Relative humidity: 5% to 95% non-condensing
  • Water resistance: IEC 60529/ EN60529 IPX6 with electrodes connected and battery installed
  • Dust resistance: IEC 60529/ EN60529 IP5X with electrodes connected and battery installed
  • Enclosure: IEC/EN 60529 IP56
  • Altitude: -381 to 4 575 metres (-1,250 to 15,000 feet)
  • Shock: MIL STD 810F Method 516.5, Procedure 1 (40 G’s)
  • Weight: 0.2 kg (0.44 lb)
  • Size:
    • 10 cm x 13.3 cm x 2.4 cm
    • (3.93 in x 5.24 in x 0.94 in)
  • Battery type: Disposable single-use combined battery and defibrillation electrode cartridge (lithium manganese dioxide (LiMnO2) 18V)
  • Type: CR123A 3V, Non-rechargeable
  • Type number: 6205
  • Designation IEC: CR 17345
  • Weight (per battery): 17g
  • Quantity: Four
  • Memory type: Internal memory
  • Memory storage: 90 minutes of ECG (full disclosure) and event/incident recording
