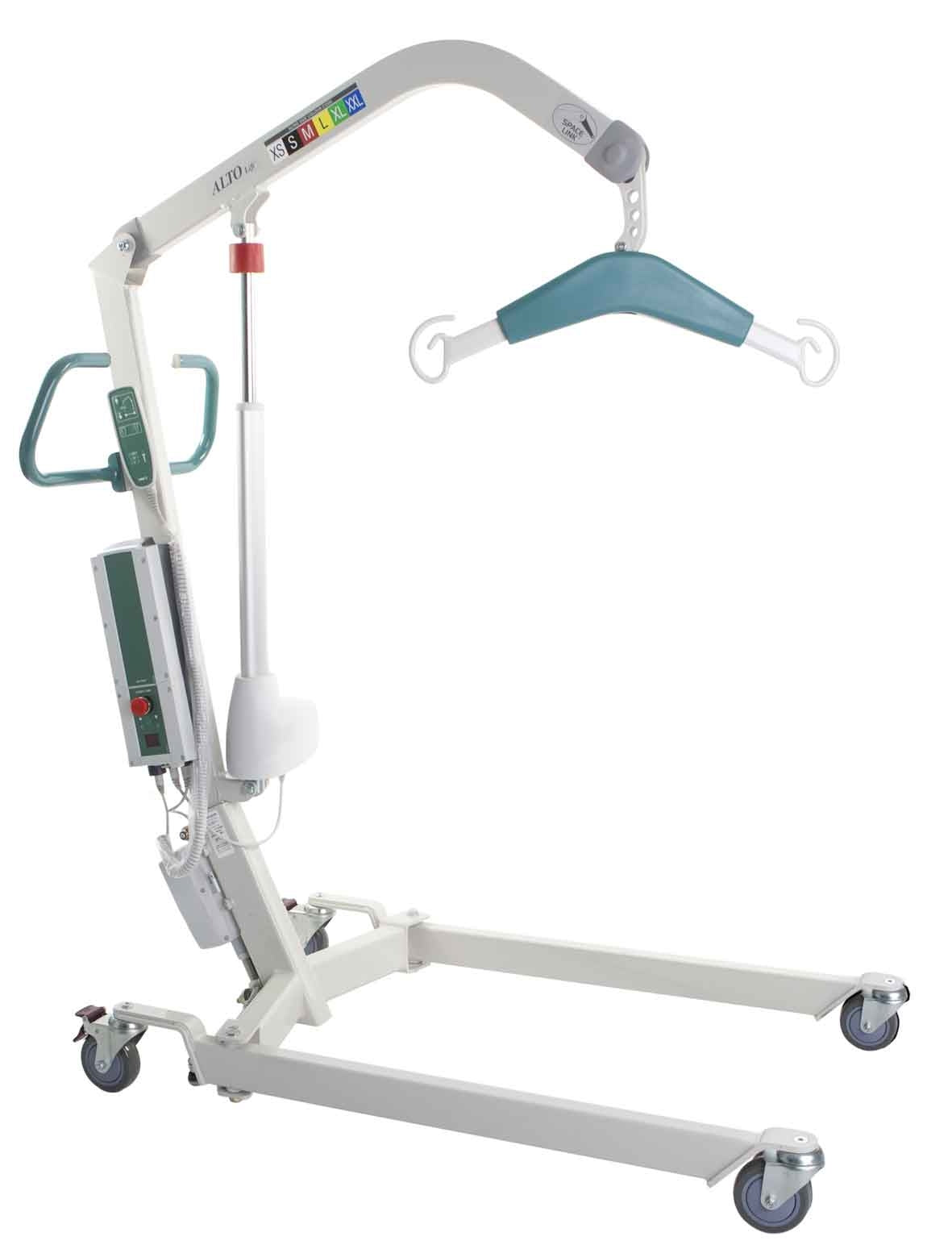

The Heavy-Duty Patient Lifting Hoist is a medium-sized heavy-duty mobile patient lifting hoist with a safe working load of 200kg and an electric leg spread.

Whilst being compact it provides superior patient lift space through the use of Space Link technology.

This lifter is the choice for institutional use of home care where a high capacity lift is required.

Specifications

• Safe Working Load 200KG
• Base Length 1150mm
• External Base Width Closed 700mm
• External Base Width Open 1130mm
• Internal Base Width Closed 600mm
• Internal Base Width Open 1030mm

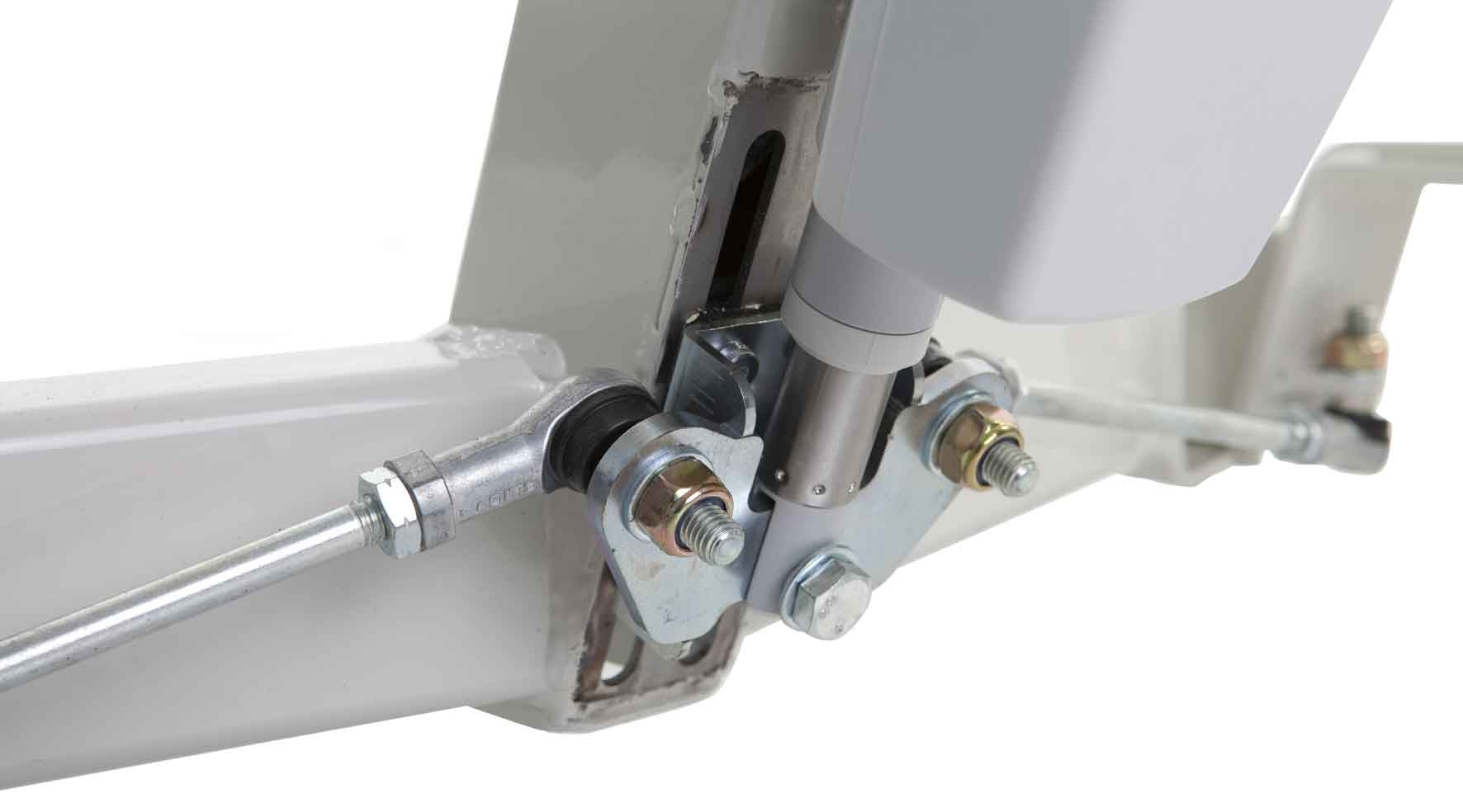

• Base Width Adjustment Electric
• Under Bed Clearance 130mm
• Minimum Height Yoke 300mm
• Maximum Height Yoke 1920mm
• Average Lift Range 1620mm
• Lifter Weight 46KG
• Minimum Storage Height 1350mm
• Under Base Height 55mm
• Maximum Hoist Reach 1060mm
• Minimum Hoist Reach 610mm
• Hoist Reach at Maximum Height 515mm
• Mass of Heaviest Part 24KG (Mast Assembly)

SKU: PATIENTLIFTHOIST
