JTECH Commander Echo Algometer with Console

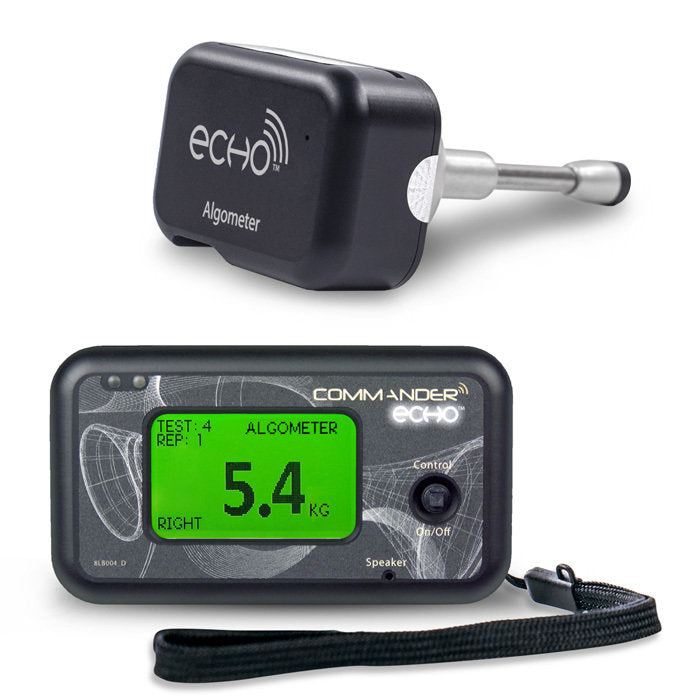

The JTECH Commander Echo Algometer is a wireless and portable pressure and pain threshold testing device. Algometry is ideal for helping evaluate fibromyalgia and trigger point tenderness. The JTECH Algometer includes the separate blue tooth console display allowing practitioners to measure and view results at the same time.

JTECH Commander Echo Algometer Key Features:

  • Innovative pop-in “quick connect” system makes changing test tips fast and easy
  • Quantify joint tenderness in arthritic conditions
  • Evaluate pain sensitivity and identify trigger points
  • Thin profile improves stability during tests
  • Ergonomic shape fits your hand and provides secure grip
  • Wireless console is independent of the testing device allowing the tester to review data during active testing without influencing the patient’s level of effort


SKU: JTECHALGOMETER

Shipping calculated at checkout.

Request Quote

Description
Technical Specifications
Videos
Warranty
Description

JTECH Commander Echo Algometer Highlights:

  • Console records and stores up to 20 tests with up to 4 repetitions per side
  • Fine resolution that identifies small yet clinically significant changes in pressure sensitity
  • Replaceable rubber tips
  • Two tips (1cm2 & 0.5cm2) for applying to either large muscles or small muscles of the head and neck
  • Document long and short term effectiveness of treatment
  • Smart load cell technology maintains accuracy even when force is applied off centre


JTECH Console Highlights:

The JTECH Console has a large easy to read LCD window. It connects to the JTECH Commander Devices through blue tooth and is physically independent of the testing device allowing the practitioner to review the data during active testing. Stores 20 test with 8 reps per side, and automatically calculates appropriate statistics. Measure in pounds, kilograms and degrees.



*JTECH Software Sold Separately - Commander Echo Downloader enables you to create quick but meaningful reports from the data you collected on your Commander Echo Console with the click of a button. The easy-to-use Commander Echo Downloader software interfaces directly with your Commander Echo Console eliminating dictation and transcription errors. Ability to print a number of different reports.

Technical Specifications

JTECH Commander Echo Algometer Specifications:

  • 20 Tests Stored on Console
  • 1-4 Repetitions per Test
  • Audible cues
  • 0-25lb (11kg) Load Cell Capacity
  • Automatic coefficient of variation calculations (CV)
  • Automatic bilateral deficit calculation
  • Threshold settings: 0.2, 0.4, 1, 3lb.
  • Units of measure (pounds default): lb, kg, N
  • Automatic fatigue calculation
  • Timed test for fatigue evalation
  • Rechargeable Batteries

Videos
Warranty

12 Months Warranty
