Lafayette Hand Held Dynamometer (With Free Hydraulic Hand Dynamometer)

Lafayette Hand Held Dynamometer

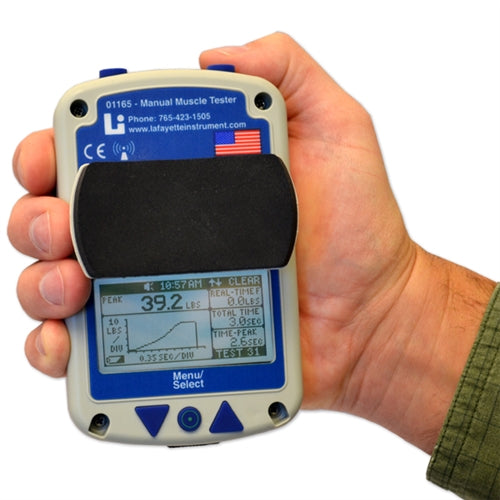

The Lafayette Hand Held Dynamometer also know as a Manual Muscle Tester; is an ergonomic hand-held device for objectively quantifying muscle strength.

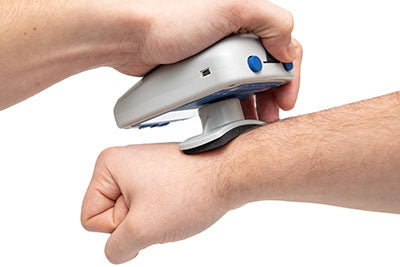

Tests are performed with the clinician applying force to the limb of a patient. The objective is for the clinician to overcome or “break” the patient’s resistance. The Lafayette MMT records the peak force and the time required to achieve the “break” providing reliable, accurate and repeatable muscle strength readings that conform to most manual muscle testing protocols.

*Spring Sale - Comes with Free Saehan Hydraulic Hand Dynamometer worth $350exGST

SKU: LAFAYETTEMMT

Shipping calculated at checkout.

Description
Technical Specifications
Videos
Brochures/Manuals
Warranty
Description

While the Lafayette MMT is terrific for measuring a wide range of strengths, it’s also effective at detecting minor variations as well. The Lafayette MMT’s interactive menu allows the user to select a wide range of options, such as data storage, test times (1-10 seconds) and choice of high and low force threshold settings. The large, easy-to-read LCD screen clearly displays all information, helping to ensure accuracy and reduce errors. Includes a rechargeable lithium-ion battery, 3 easy to change molded plastic stirrups with pads and a fully illustrated instruction manual. The MMT displays results in both pounds and kilograms.

Features a dual measurement range (0-136kg. or 0-23kg.) for increased sensitivity. Unit has a weight capacity of up to 300 lbs (136kg). On-board storage of up to 150 test results with browsing capability. Fully charged, the rechargeable battery offers 6 hours of continuous use. To save battery life, unit will automatically shut-off after 5 minutes of inactivity.

Available separately, optional data transfer software allows Bluetooth communication between the Manual Muscle Tester and computer.

Lafayette MMT Features:

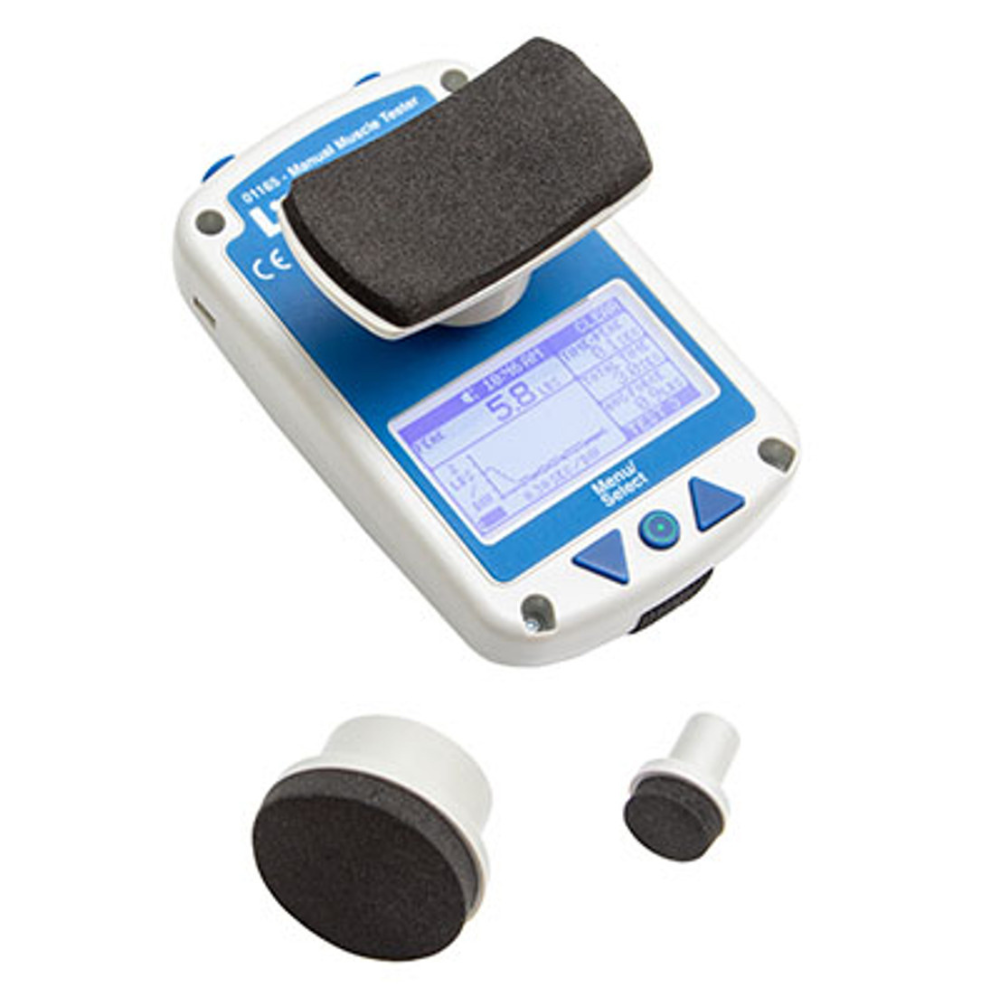

  • Three (3) easy to change molded plastic stirrups with pads
  • Measures - Peak force; Time to reach peak force; Total test time; Time within selectable ranges & Average force
  • Data storage for up to 150 tests in on-board memory
  • Automatic or manual storage of data
  • Measurement range 0-300 lbs (136.1 kg/1335 N)
  • Selectable test time from 1 – 10 seconds
  • Tone to indicate start, stop, and entering within a range
  • Microprocessor controlled
  • Built-in stored data browsing capability

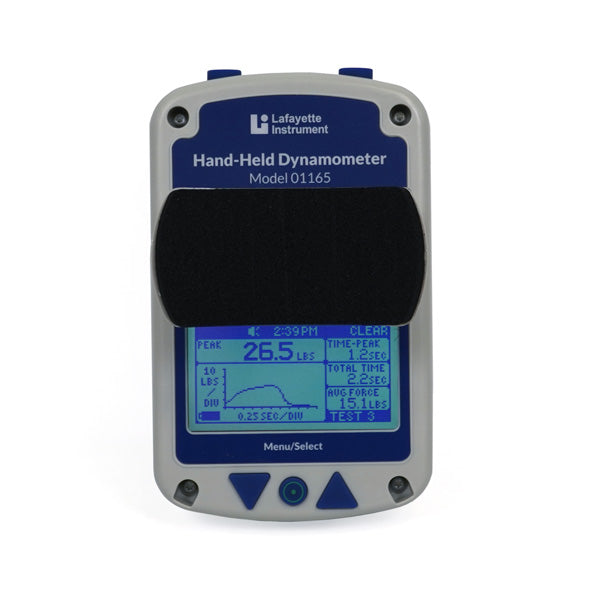

  • Easy to read graphical LCD display
  • Automatic shutoff after 5 minutes of inactivity
  • Battery indicator on LCD display
  • Interactive menus allowing users to select device options
  • Battery powered: (1) rechargeable lithium-ion battery
  • Optional: Data Transfer Software

Technical Specifications

Lafayette MMT Specifications:

  • Size: 3.16” x 5.11” x 1.6” (8.03cm x 12.98cm x 4.1cm)
  • Range: 0-300 lbs (136.1kg) (1335 N)
  • Accuracy: ± 1 % over full scale or ± 0.2 lbs
  • Resolution: 0.1lbs/0.1kg/0.1N(0-999.9N) / 1N(1000N-1335N)
  • Battery Life: 6 hrs powered on, 30 minutes after low battery condition
  • Charge Time: 80% charge => 45 minutes / Full charge => 2 hrs
  • Data Storage Capacity: 150 tests
  • Calibration Points: 31 point (Every 10lbs, 0 – 300)
  • Preset Test Length: 0.5-10 seconds; in 0.1 second increments

Videos
Warranty


12 Months Warranty
