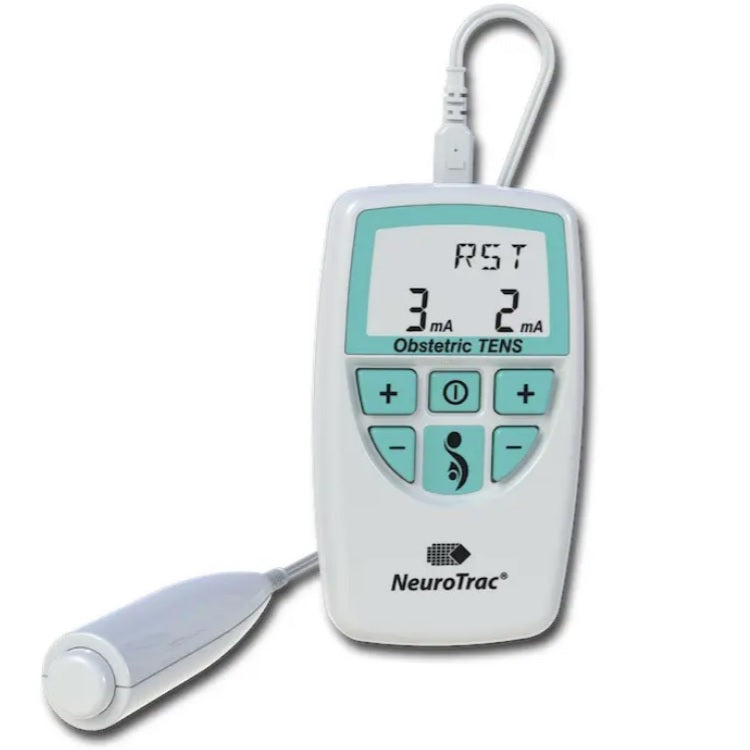

NeuroTrac Obstetric TENS Labour & Pregnancy TENS Machine (With Hand Remote)
The NeuroTrac Obstetric TENS Machine is specially designed for pain relief during child labour. The NeuroTrac Obstetric Labour TENS Machine offers a drug free pain relief which is safe for the mother and child (no known side affects).
Digital TENS with Hand Remote Control.
Labor Pain Program with Remote Boost When Intense Pain.
Dual channel: individually isolated circuits.
Amplitude: 0-90 mA into 500 Ohm load ; indication only. Actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 70 mA, at 1500 Ohms load the maximum will be limited to 65 mA.
Type: Constant Current, maximum output voltage 180 Volts +10 / -30 Volts.
Waveform: Asymmetrical, rectangular bi-phasic with zero DC current.
Pulse width: 220μS [2% accuracy].
Pulse Rate: 90Hz (Continuous mode) [2% accuracy].
Mode: Continuous (Boost mode).
Burst mode: Bursts of 9 pulses [200 μS] at 150 Hz, repeating twice every second (Rest mode).
Ramp up Time: 0.8 seconds from Rest to Boost.
Time duration: continuous until switched off.
Low Battery Indicator: If the battery goes below 6.9 volts +/- 0.2 volts the battery symbol will flash on/off once every second.
If the battery voltage is below 6.6 (+/- 0.2) volts the unit will not turn on.
Open Electrode Detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero.
