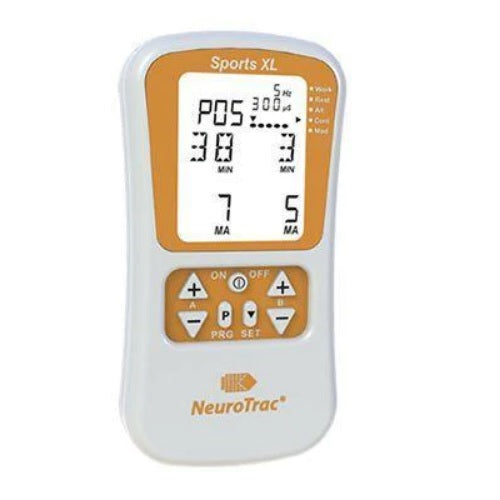

NeuroTrac Sports XL EMS Muscle Stimulation Machine (4 Channel)
Regular price
Sale price
Regular price
Unit price

NeuroTrac Sports XL EMS Muscle Stimulation Machine (4 Channel)

The NeuroTrac Sports XL EMS Machine can support up to 4 leads (two on each channel) and 8 electrodes allowing users to stimulate up to 4 areas all at same time.

The NeuroTrac Sports XL is an advanced and modern digital dual channel STIM unit featuring 21 built in sports and muscle rehabilitation programmes and 3 custom programmes. It will help with a large variety of muscle related problems and is widely used by therapists around the world. If you suffer from any type of muscle related problem, the NeuroTrac Sports may be able to help. Stimulate your muscles to perfection!


  • Dual channel: individually isolated circuits.
  • 2 lead wires for each channel giving a total of 8 electrode placements
  • 21 Preset sports programmes & 3 customisable programmess
  • Amplitude: 0-90 mA into 500 Ohm load; actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 86 mA, at 1500 Ohms load the maximum will be limited to 65 mA.
  • Type: Constant current, maximum output voltage 180 Volts +10 / -30 Volts
  • Waveform: Symmetrical, rectangular bi-phasic with zero DC current.
  • Selectable pulse width: 50 μS – 330 μS [2% accuracy].
  • Pulse Rate selection: in the continuous mode 2 – 100 Hz [2% accuracy].
  • Time duration of the treatment selectable: 1 minute to 90 minutes.
  • Low Battery Indicator: If the battery goes below 6.9 volts +/- 0.2 volts the battery symbol will flash on/off once every second.
  • Open Electrode Detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero.
  • Ramp up time 0.1 – 9.9 seconds.
  • If the battery voltage is below 6.6 (+/- 0.2) volts the unit will not turn on
  • Accessories supplied with this device :Dual lead wire; Soft bag; Operating manual.
