Pacific Medical Tilting ICU Hospital Bed

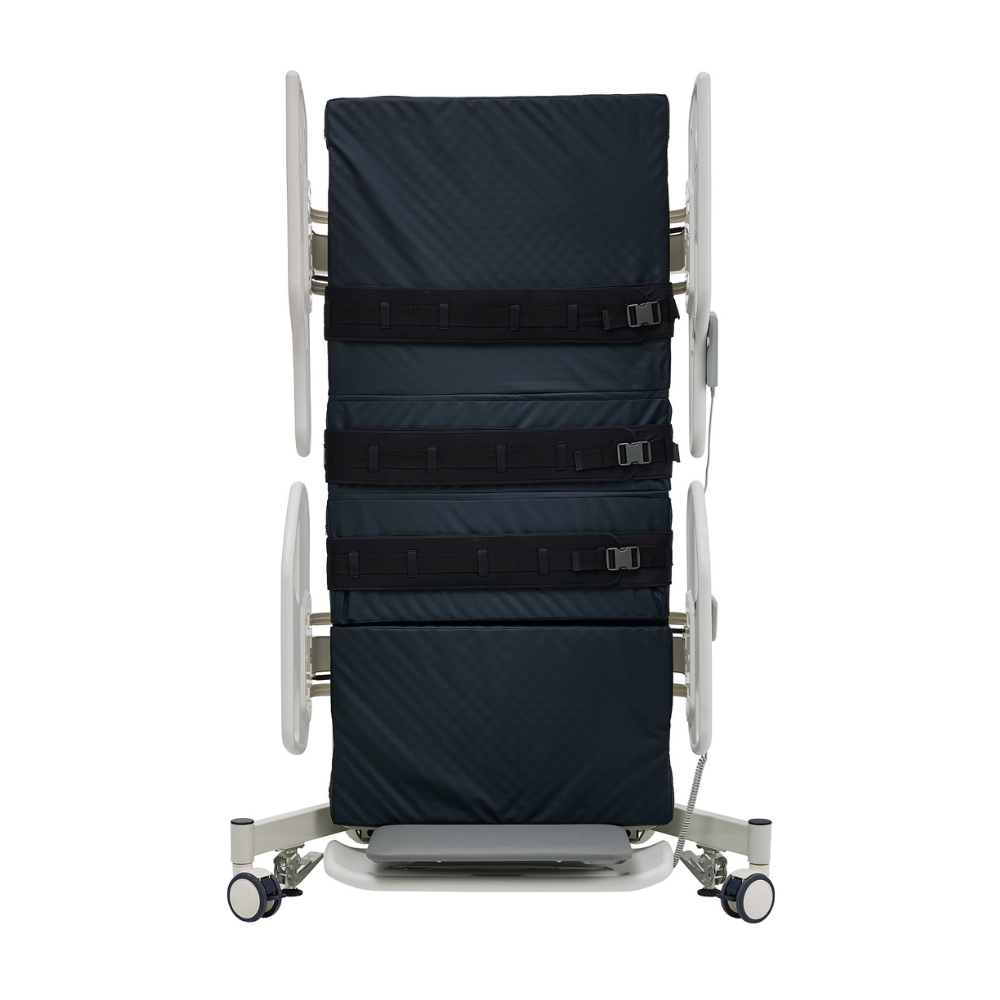

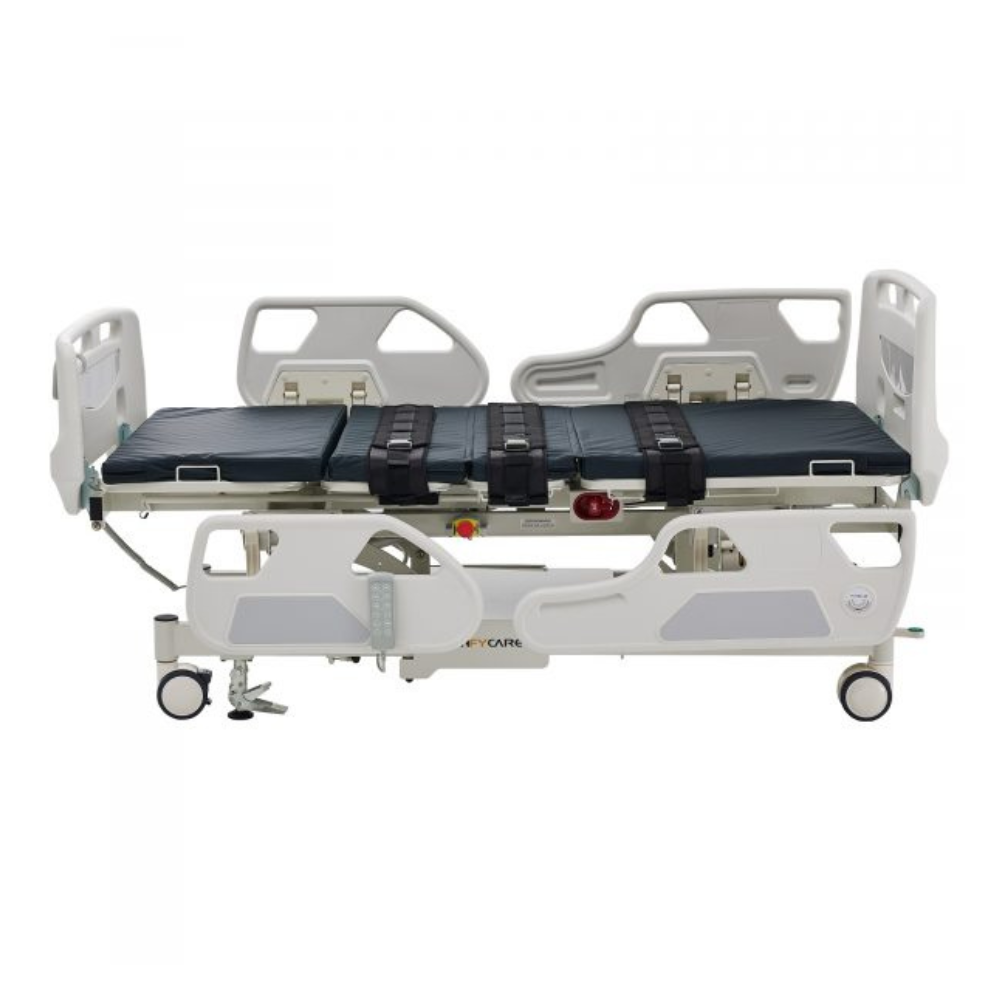

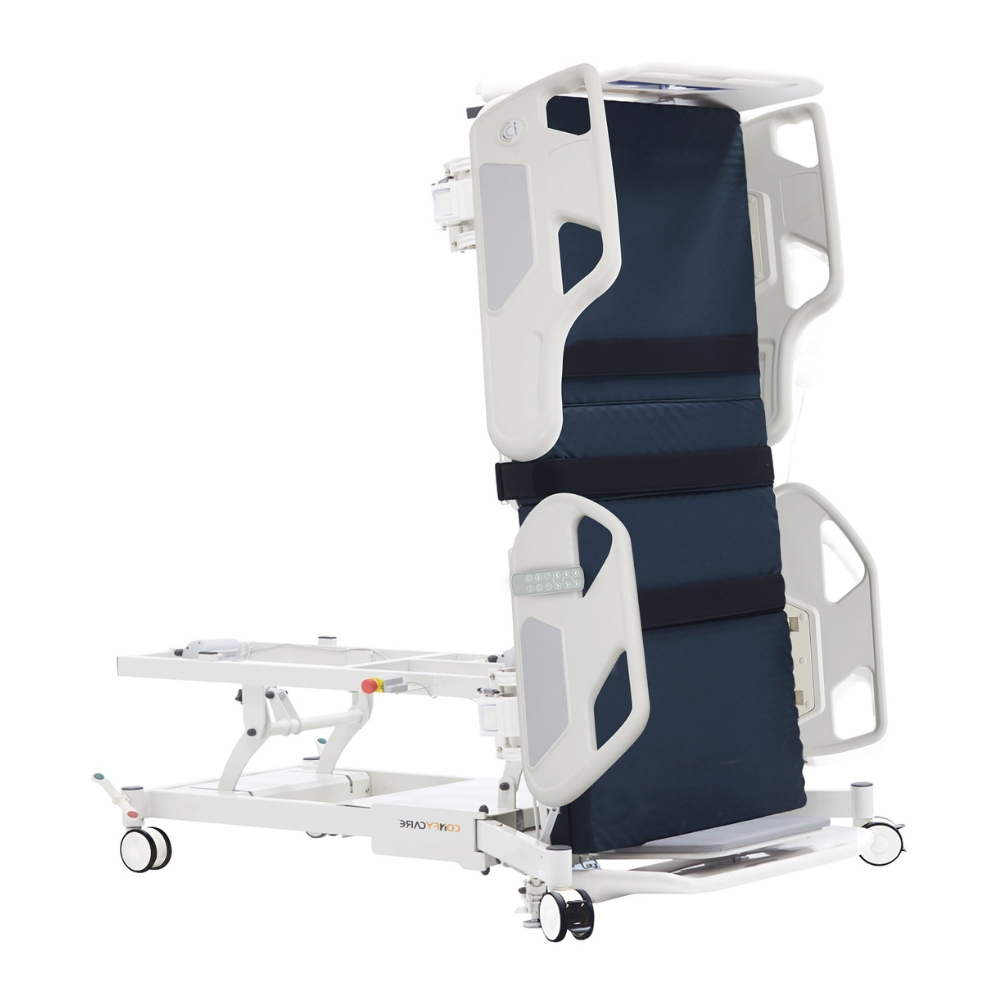

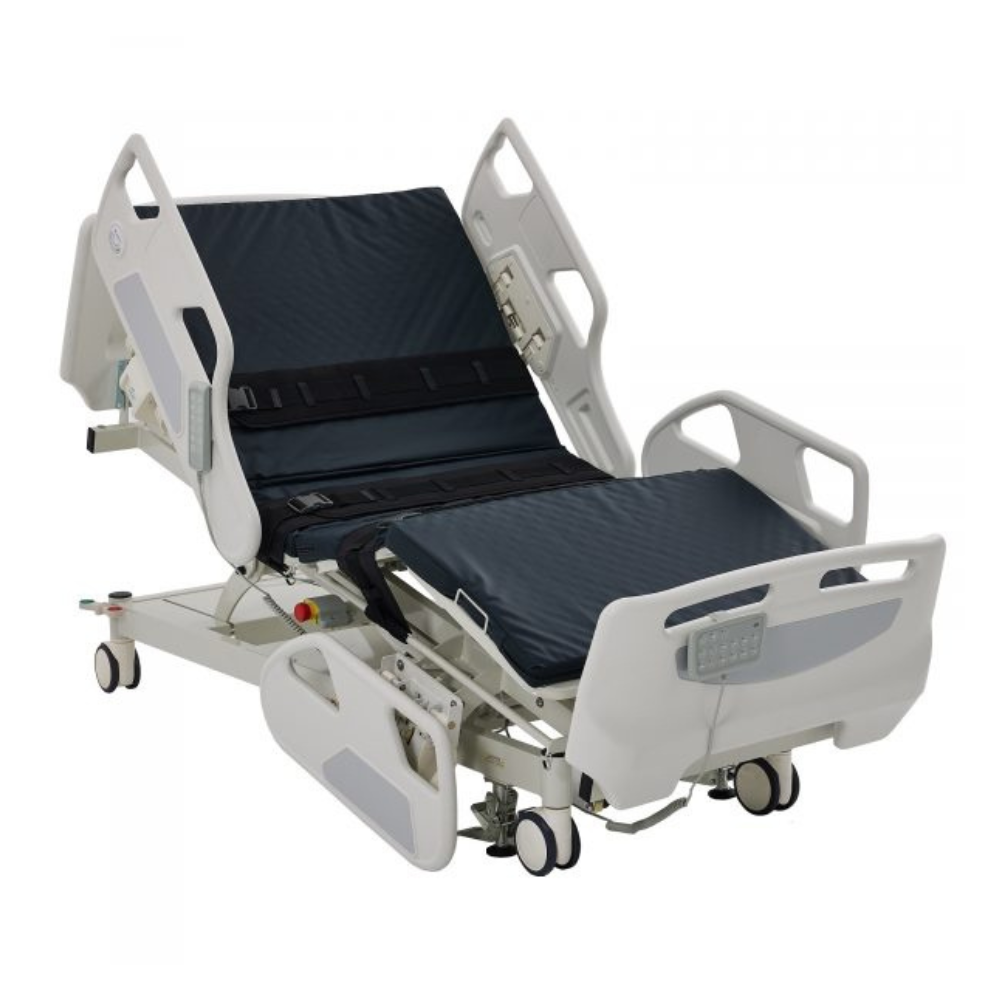

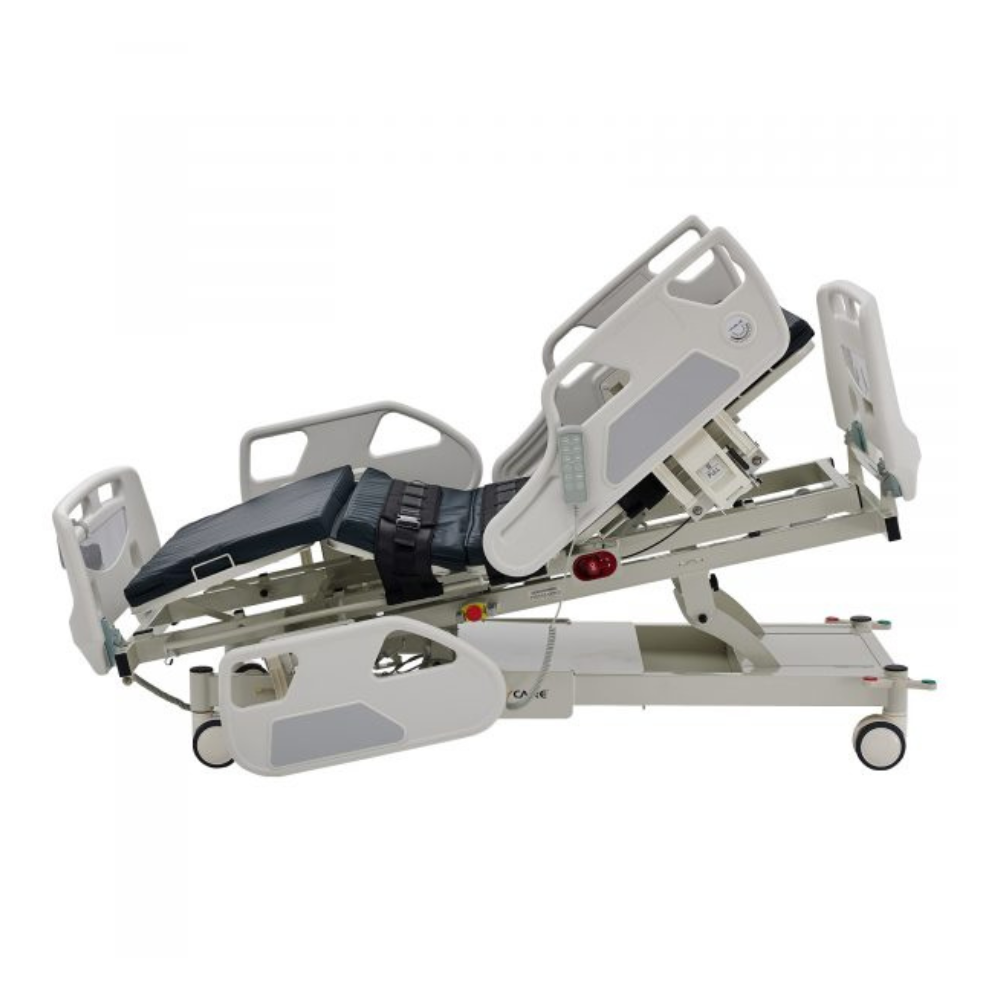

A strong, reliable and high quality five function tilting ICU hospital bed. Well featured including removeable boards, removeable ABS side rails, drainage bag holders, iv pole & 125mm central lock castors. An ideal product for high needs patients requiring long term treatment with the tilting function allowing treatment of the nervous system with weakness, pain, muscle spasm, and for auxiliary rehabilitation purposes such as hemiplegia, paraplegia and traumatic brain injury and other severe patients to resume standing training.

SKU: HBT

Shipping calculated at checkout.

Request Quote

Description
Technical Specifications
Videos
Description

Features:

  • Electric operation by handset with integral function lockout
  • Electrically operated backrest, height & knee break angle
  • Backrest manual CPR release on both sides
  • Tilt inclinometer
  • Emergency stop button
  • Removeable head & foot board
  • Patient handset & nurse control panel
  • Battery backup
  • Four ABS safety side rails
  • Four drainage bag holders on both sides
  • Durable patient belts
  • Heavy duty IV pole
  • Auto contour simultaneous adjustment of backrest & knee break
  • 125mm heavy duty central locking castors

Technical Specifications

Specification:

  • Overall length: 215cm
  • Overall width: 110cm
  • Height range: 52-76cm
  • Hoist clearance: 14cm
  • Mattress platform length: 195cm
  • Mattress platform width: 90cm
  • Backrest angle: 0-75 degrees
  • Knee break angle: 0-35 degrees
  • Leg angle: 0-20 degrees
  • Trendelenburg & reverse trendelenburg: 0-16 degrees & 0-13 degrees
  • Tilting angle: 0-85 degrees
  • SWL: 225KG
  • Warranty: 3 Years
  • Certification: CE, FDA, ISO13485-2016
