Description
The Sportreact Athlete Agility Systems comprise of combined Reaction Lights and Timing Sensor Gates. The Sportreact Systems allow coaches to track an athletes progress in areas including Focus, Speed, Coordination, Balance, Endurance & more.
The Sportreact Reactive Systems can also be used for cognitive, motor skills and rehabilitation purposes; using 231 different signs, numbers and symbols all in different colours for a wide range of customised exercises and tests.
Sportreact Features:
- 3D Axis Accelerometer Vibration Sensors (10 Levels of Sensitivity)
- Distance Proximity Sensor (1-150cm)
- Laser Beam Timing Sensor (Up to 10m Distance Pod to Pod)
- Up to 8 Hours Battery life
- LED Screens with Signs, Letters, Numbers & Colours
- Up to 50m Distance & 18 Pods (9 Timing Gates) Connected
- Integrate with Tripods, Suction Cups & Straps
- Use on the ground, with tripods or stuck to the wall/equipment.
- Durable & High Environmental Stability 12 Nylon Design
- IP66 Dust Tight & Water Resistant
- Detailed Workout Parameters & Customization
- Standard & Custom Templates
- Individual & Team Data Analytics, Comparisons & Reporting
- iOS, Android Apps & Web Dashboard
- BLE Energy Connection
- Automatic Firmware Updates via Sportreact App
Technical Specifications
Hardware

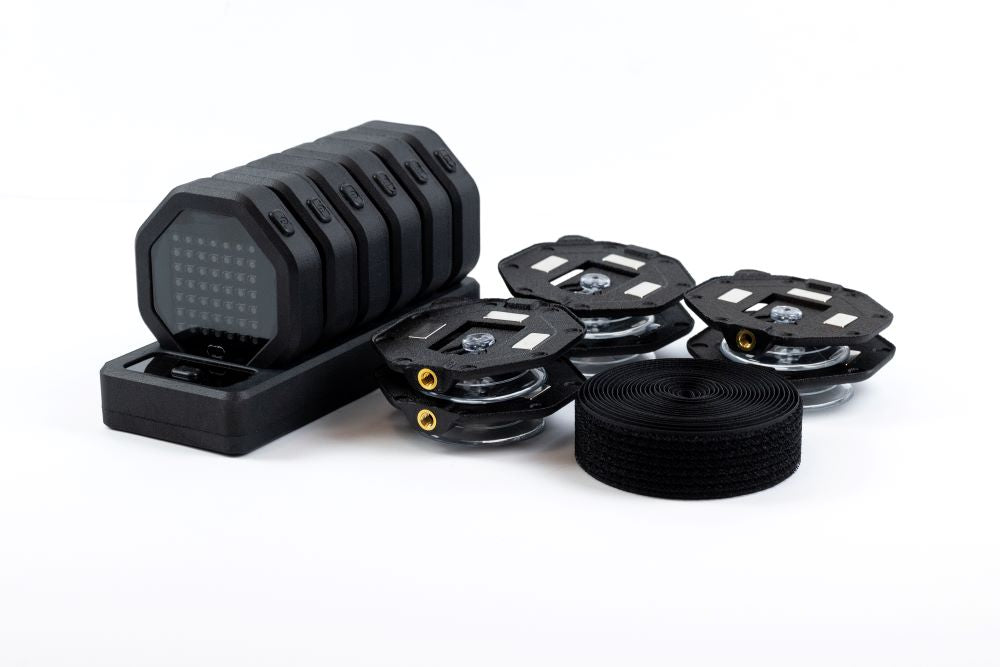

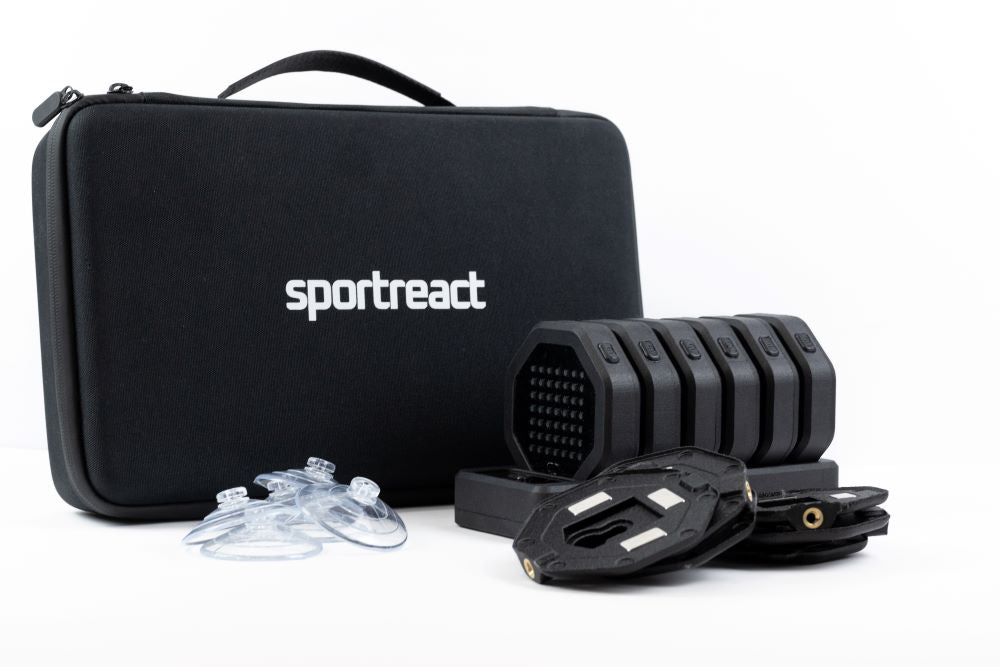

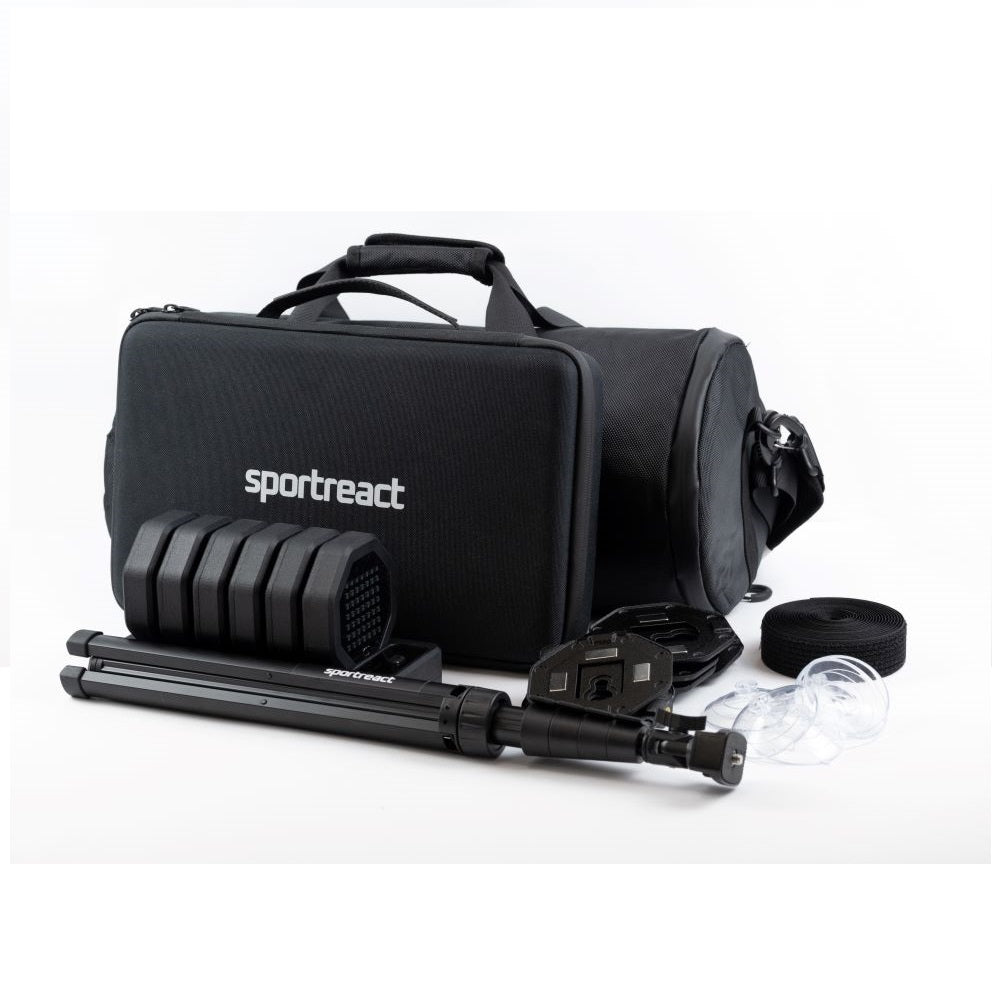

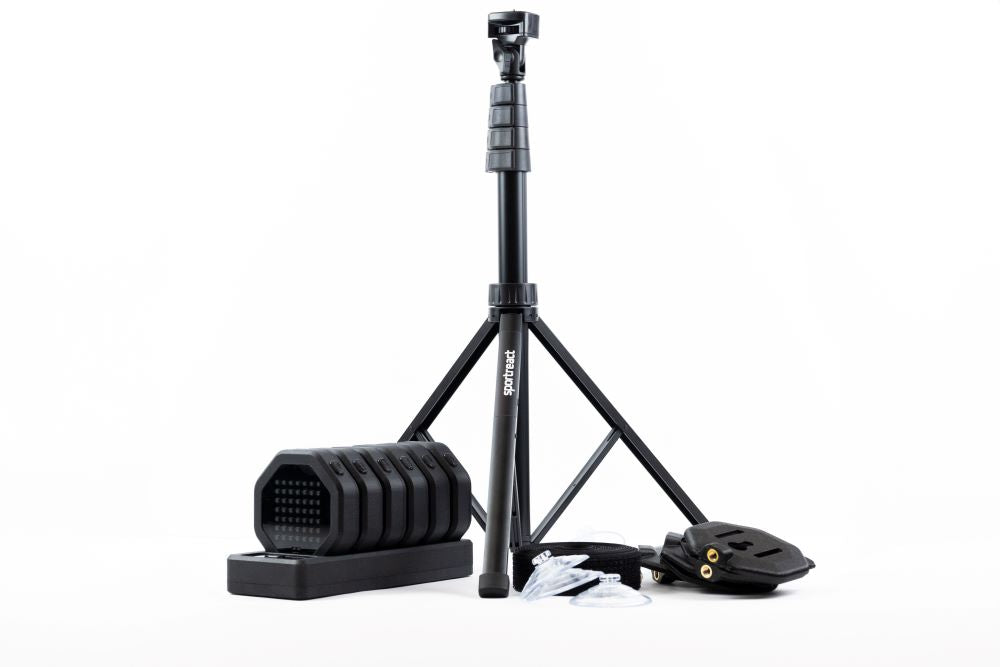

- Starter Kit Package - 6 pods, 6 tripods, 6 add-on docks, 6 suctions cups, strap, 2 bags
- Pod Dimensions (Per unit) - 93 mm (3.6in) x 93 mm (3.6 in) x 22 mm (0.9 in); 180 g (0.4 lb)
- Tripod Dimensions (Per unit) - 460 mm (17.7 in) x 50 mm (2 in) x 50 mm (2 in); 450 g (1 lb)
- Add-on docks dimensions (per unit) - 93 mm (3.6 in) x 93 mm (3.6 in) x 13 mm (0.5 in); 40 g (0.1 lb)
- Charger Dimensions - 82 mm (3.2 in) x 200 mm (7.9 in) x 29 mm (1.2 Charger in); 315 g (0.7 lb)
- Pods Case - 365 mm (14.4 in) x 220 mm (8.7 in) x 90 mm (3.5 in); 2.0kg (4.4 lb)
- Tripods Case - 490 mm (19.3 in) x 200 mm (7.9 in) x 200 mm (7.9 in); 4.5kg (9.9 lb)
- Total Shipping Package - 500 mm (19.7 in) x 300 mm (11.2 in) x 300 mm (11.2 in); 6.5kg (14.3 lb)
System
- Vibration sensor - 3 Axis Digital Acelerometer (1.6g to 16g, resolution - 1.6g)
- Proximity sensor - Distance Ranging Time-of-Flight sensor 100m (110yd) (50Hz, FoV 27 deg)
- Laser beam sensor - Infrared pod-to-pod signal detection 10m (11yd)

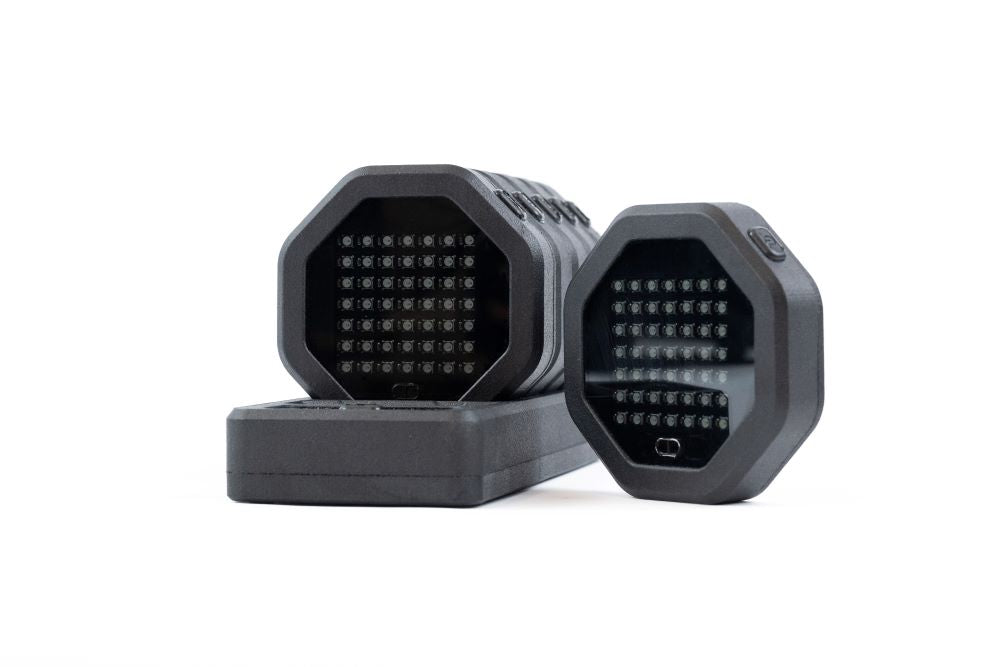

- Display screen - 7x7 matrix RGB LED (49 pixels); 8 bit RGB Specter; 231 predefined signs
- Time unit - 1/1000th of a second
Communication & Range
- Inter-unit - 120m (131.23 yd) (primary unit to furthest unit)
- Bluetooth Low Energy (BLE) - 30 m (32.81 yd) (primary unit to mobile device)
- Wireless - IEEE Std. 802.11-2012
- Maximum Connections (For 1 System) - 12 pods (12 reaction lights or 6 gates)
Power
- Battery power - +3.7V 2500mAh Li-Ion rechargeable battery
- Battery life - 10h idle use (default settings), 8 active use (default settings)
- Charging time - 3.5 hours
- Connectivity - USB-C port
Enclosure
- Durability - Durable & high environmental stability Polyamide 12 nylon material
- Water resistance - Dust tight and water resistant (IP66)
- Working temperature - 0°C - 35°C (32°F - 95°F)
Software Specs
- Operating systems - iOS/iPadOS 12.0 or later; MacOS 11.0 or later; Android 5.0 or later
Videos
Brochures/Manuals
Warranty
1 Year Manufacturers Warranty
