Vitalograph Alpha Desktop Spirometer With Printer & Spirotrac 5 Software
Vitalograph Alpha Spirometer With Inbuilt Printer & Spirotrac V Software

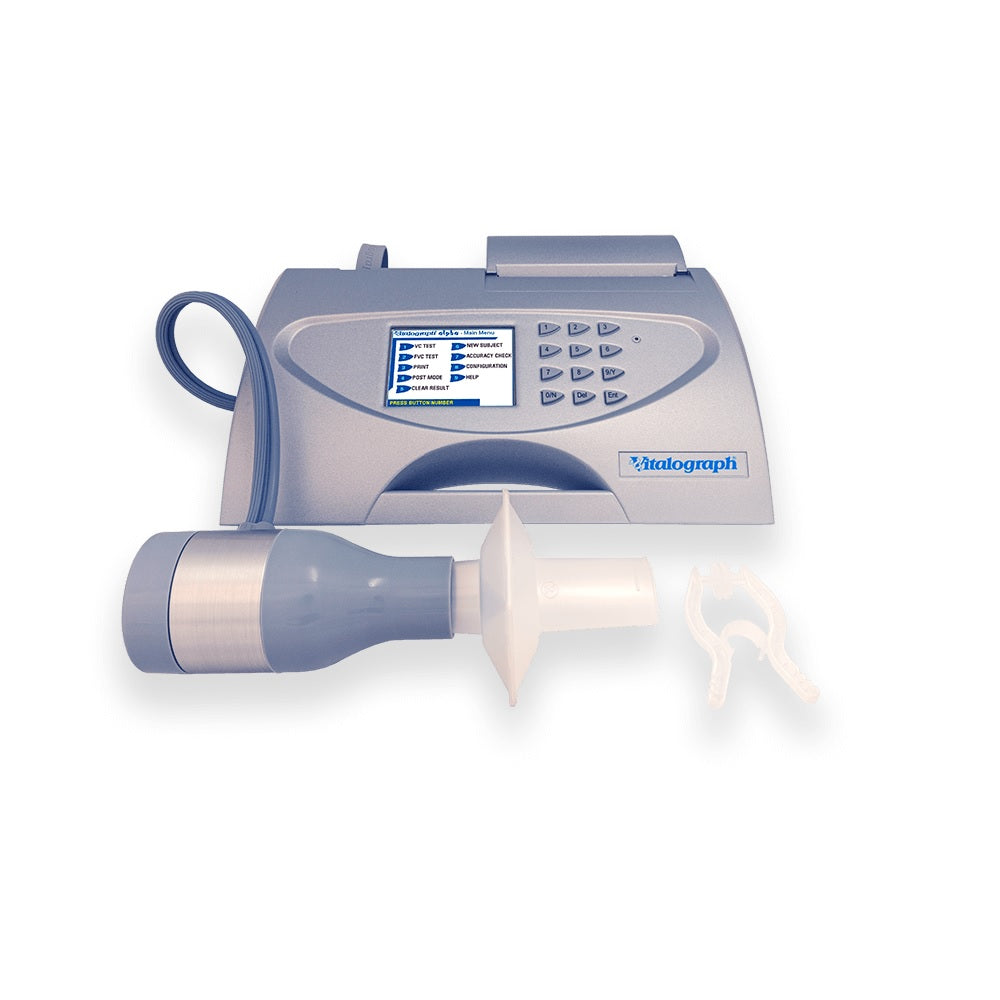

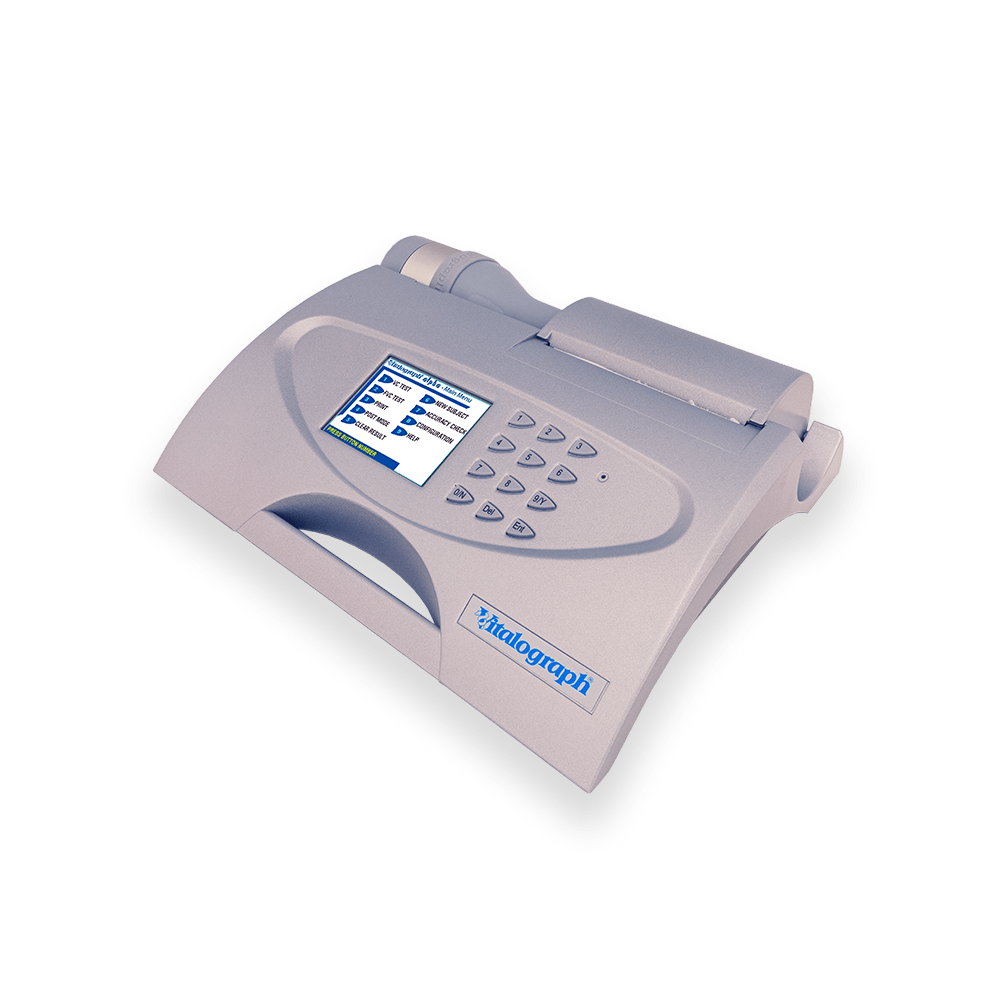

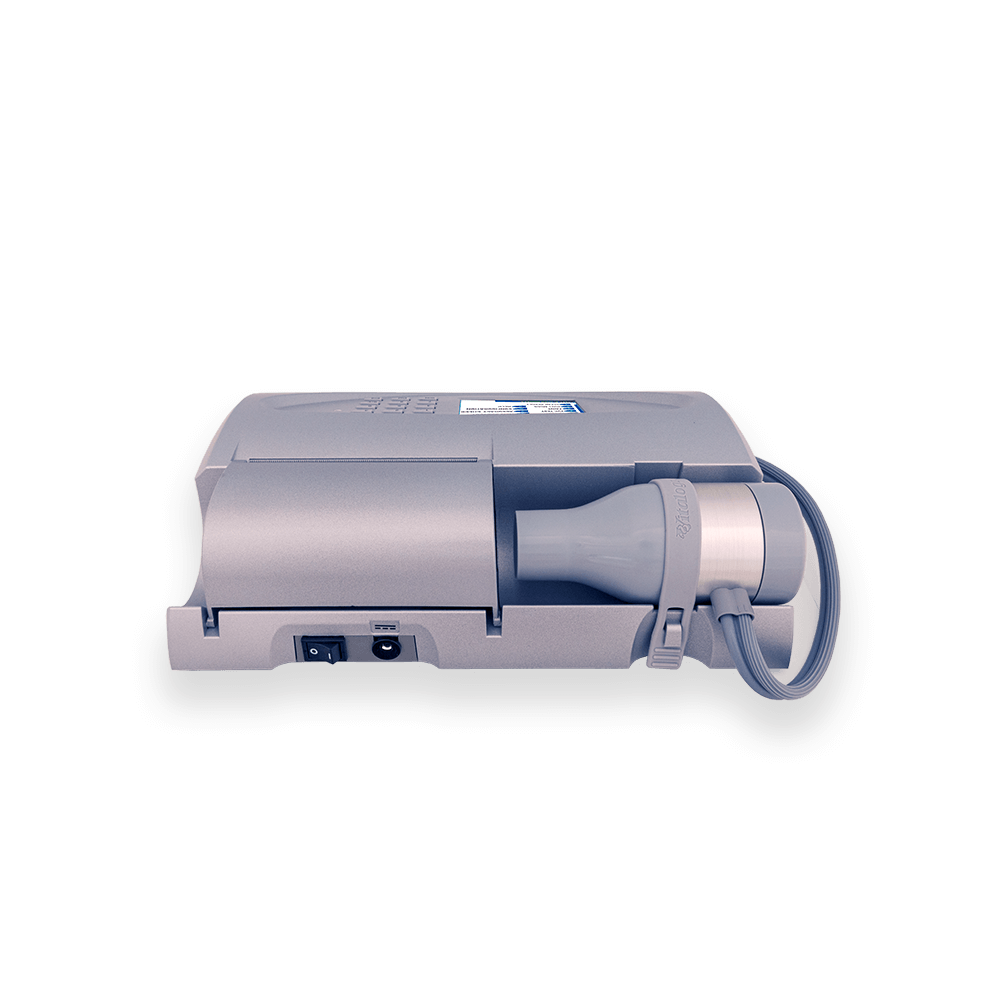

The Vitalograph Alpha Spirometer is an easy to use, lightweight desktop spirometer that delivers an ideal combination of portability, speed and accuracy.
The Vitalograph Alpha low cost spirometry testing is enhanced by a precise and robust Fleisch pneumotachograph and a high resolution colour screen.
Performing spirometry tests could not be easier than with the Vitalograph Alpha. Simply enter the subject's age, height and gender, then select VC or FVC test. After the test series is complete, print the report on the built-in printer and/or transmit the report to your PC. The Vitalograph Alpha automatically selects the best test and presents real-time curve visualisation, interpretation and test quality information in a simple, clear and easy to read format.
Features:
Measures VC, FVC, FEV1, FEV1 Ratio, PEF, FEF25-75% and more
On-screen visualisation of volume/time and flow/volume curves
Saves multiple pre-tests for subsequent post-testing
Compact Flash removable memory card slot
Presents the test information in clear, easy to read format

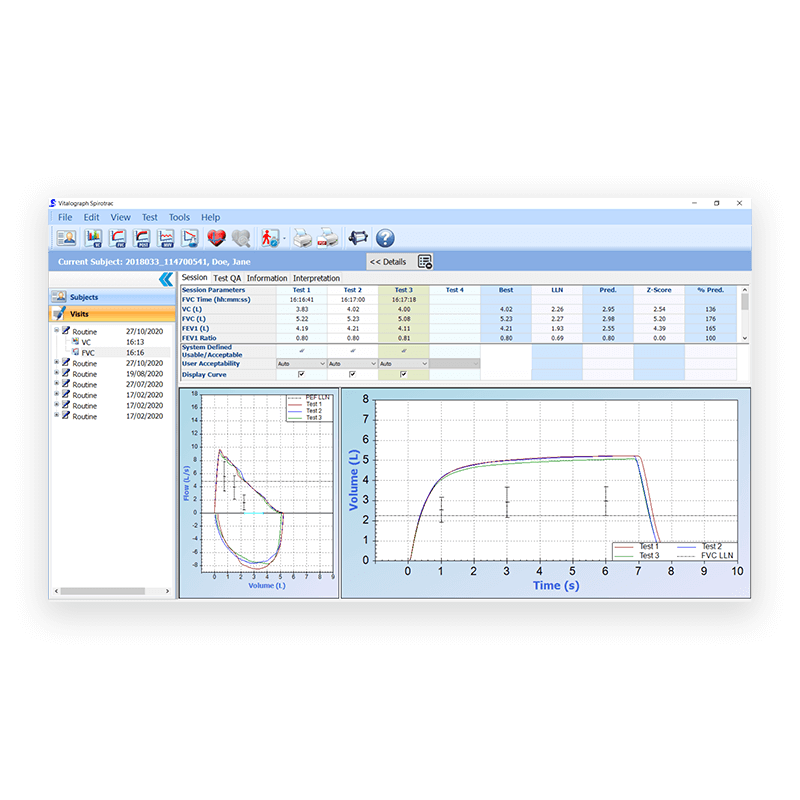

Links to PC via USB with Vitalograph Spirotrac V Software
Fast, silent printer that prints 140 tests per roll
Battery and mains power with integrated battery for off site testing
Real time clock
Autoclaveable flowhead
Facility for user accuracy checks
Automatically selects the best test
Complete with stylish carry case
Specifications:
Weight: 2.0 kg net
Parameters Measured: Varies by country variant
Operating Temperature Range: 17 - 37°C This needs to be standardised
Voltage: 110 - 250V~ 50/60Hz
Flow Detection Principle: Fleisch Type Pneumotachograph
Volume Detection: Flow Integration
Accuracy: Volume +/- 3% (up to 8L) Flow +/- 5% (up to 15 L/s)
