Description

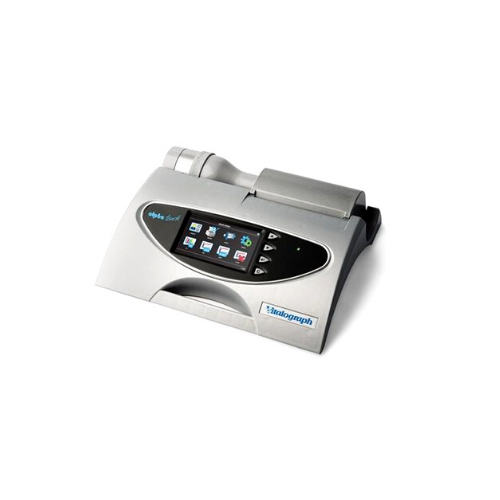

The Vitalograph ALPHA Touch Desktop Spirometer features a precise and robust Fleisch pneumotachograph and a simple icon driven menu, plus a large, high resolution colour touch-screen and storage capacity for 10,000 subjects. Manual entry of subject data is optional as ALPHA Touch automatically copies all subject data from Spirotrac; saving time and eliminating data entry errors. Utilising Spirotrac V Software, predicted values are available through integration of the clinical results.
Features:
- New High Resolution Touch Screen
- Storage Capacity for 10,000 Subjects
- Measures Over 50 Parameters including VC, FVC, FEV1, FEV1 Ratio, PEF, FEF25-75% and more

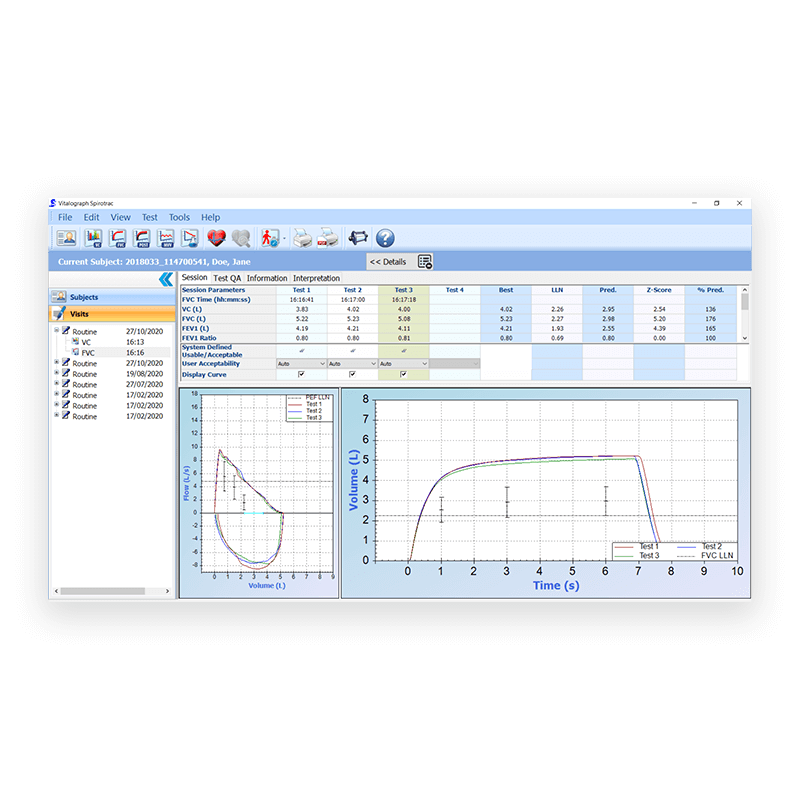

- On-screen visualisation of volume/time and flow/volume curves
- Saves multiple pre-tests for subsequent post-testing
- Compact Flash removable memory card slot
- Presents the test information in clear, easy to read format
- Links to PC via USB with Vitalograph Reports Software

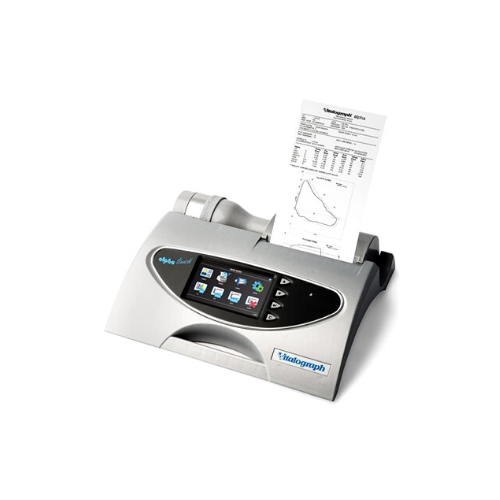

- Fast, silent printer that prints 140 tests per roll
- Battery and mains power with integrated battery for off site testing
- Real time clock
- Autoclaveable flowhead
- Facility for user accuracy checks
- Automatically selects the best test
- Complete with stylish carry case
Technical Specifications
Specifications:
- Weight: 2.0 kg net
- Subjects: Automatic population of database from Spirotrac. Name, ID; Age, Height, Gender; Smoking Status, Body Mass Index and more depending on model. Storage of up to 10,000 subjects
- 50 Selectable Parameters
- Environmental Data: Selectable: Temperature (built in sensor), Barometric pressure, altitude and humidity
- Test Types: Single breath tests, flow/volume loops, multi-breath testing, tidal breathing and combined VC/FVC type test methods supported
- Predicted Values Selectable (depending on model): ERS/ECCS; NHANES, Polgar, Pereira, Berglund, Forsche, Gutierrez, Hedenstr_m, Taiwan; Knudson, Crapo; Hsu; KNLW; Viljanen; SEPAR; Gulsvik; SBPT; Tamura; Ip; Quanjer; Wang; Dockery and more
- Data Storage: Stores up to 10,000 subjects
- PowerSAFE: Input 100 – 240V AC 50-60Hz, output 12V DC
- Battery Pack: Rechargeable NiMh, 7.2V 1, 800mAH
- Flow Detection Principle: Fleisch type pneumotachograph
- Volume Detection: Flow integration sampling @ 100Hz
- Resolution: 10 mL volume; 0.01 L/s _flow
- Accuracy when Operated in Operating Temperature Range Conditions: Flow +/- from 10% to 5%
- Max Flow rate +/-16L/s
- Min Flow rate +/-0.02L/s
- Volume Accuracy: Better than +/-3%
- Maximum Displayed Volume: 10 L
- Linearity: +/-3%
- Maximum Test Duration: 90 seconds
- Flow Impedance: <0.1kPa/L/s @ 14L/s Complies with ATS/ERS 2005
- Performance Standards: ISO 26782:2009, ISO 23747:2007; ATS/ERS 2005
- Safety Standards: IEC 60601-1:2005
- Medical Devices Directive: 93/42/EEC1993 as amended
- Designed & Manufactured Under: ISO 13485:2003, FDA 21CFR820 and CMDR
- Connectivity: USB
- Includes Spirotrac V Software
