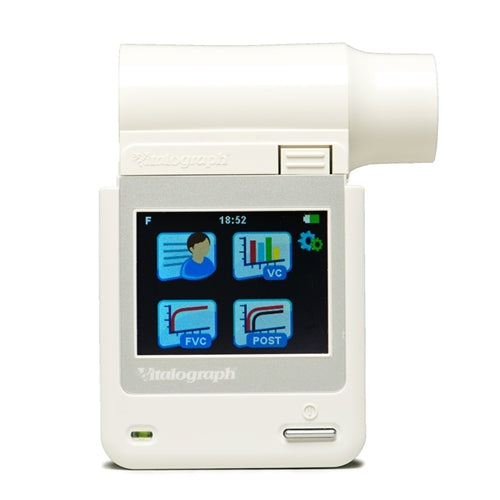

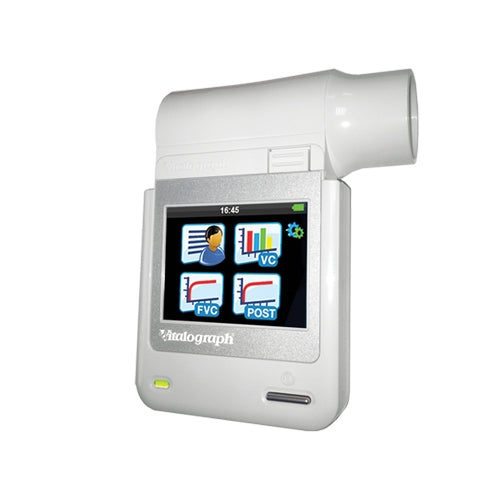

Vitalograph Micro Spirometer

Vitalograph Micro Pocket Spirometer - With PC Spirometry Reports
The Vitalograph micro is quick and easy to use as part of a routine physical examination. The micro now comes with the ‘Vitalograph Reports’ PC software for creating PDF’s that can be viewed, archived, transmitted or printed. Single breath evaluation of the most important test parameters are ready at a glance on-screen with additional parameters, predicted values, percentages and interpretation available on the PDF report.


  • Rapid single breath evaluation of FVC, FEV1, FEV1% &PEF
  • Includes Vitalograph Reports, PC PDF software
  • PDF report provides additional parameters, f/v and v/t curves with test quality, predicted values and interpretation
  • Solid-state Fleisch technology with no moving parts
  • Linear flow measurement with low back pressure
  • Low cost, compact, lightweight and robust
  • Precise technology for total confidence
  • Small Padded Carry Case
  • PC Software
  • 12 Month Warranty


  • Parameters Displayed: FVC, FEV1, FEV1%, PEF
  • Parameters on Report: FVC, FEV1, FEV1%, PEF, FEV6, PEF, FEF25, FEF50, FEF75, FEF25-75
  • Operating Temperature: ATS/ERS Limits: 17 -37 _C Design limits: 10 – 40 _C
  • Battery: User-replaceable, PP3 400 tests operating life, Auto shutdown 2 minutes after last key press
  • Measuring principle: Solid state No2 size Fleisch pneumotachograph
  • Accuracy: Better than +/-3% volumes
  • Range:0 – 9.99 L BTPS
  • Flow Impedance: Better than 0.15 kPa/L/s at 14 L/s including SafeTway
  • Display: Custom Liquid Crystal Display
  • Size: 6Ó x 3Ó x 1 1/2Ó
  • Weight: 5 oz
  • Performance Standards: ISO EN 23747:2005 ATS/ERS:2005 Guidelines
  • Safety Standards: EN ISO 60601-1:2005 -1 -2 -4
  • Medical Safety Standard: Medical Devices Directive 93/42/EEC1993




SKU: VG63001
