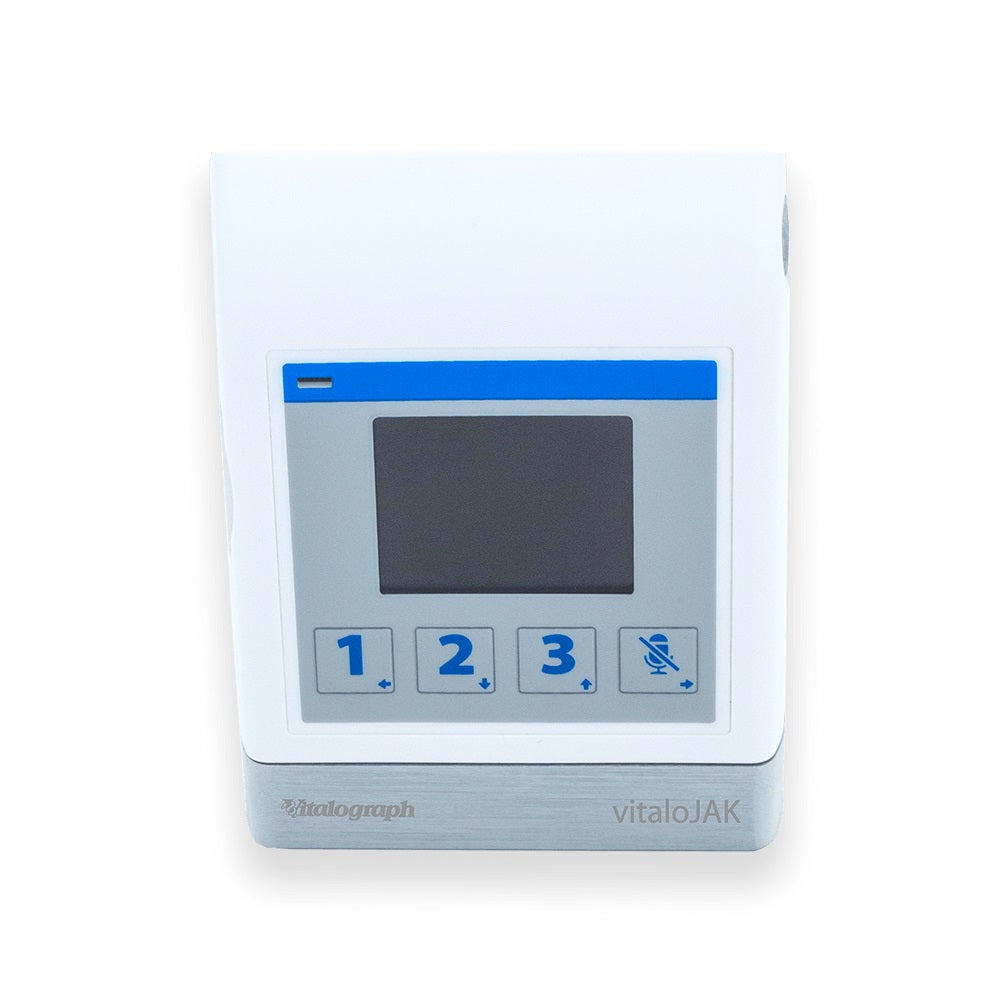

Vitalograph VitaloJAK Ambulatory Cough Recorder

The Vitalograph VitaloJAK Cough Monitor provides the only fully validated system for objective measurement of cough. Ambulatory cough recordings of up to 24 hours undergo centralized, semi-automated analysis to provide quantified data. The VitaloJAK algorithm removes non-cough data from cough recordings, reducing the file size to allow efficient analysis by our team of trained cough analysts.

Data generated by the system is proven to have median sensitivity >99% and excellent integrity. The system has been used for research since 2005 and in Phase 2 and 3 studies globally since 2014.

    SKU: VG71002

    Shipping calculated at checkout.

    Request Quote

    Similar Items

    Description
    Technical Specifications
    Videos
    Brochures/Manuals
    Warranty
    Description

    Using analysis software and processes developed in partnership with internationally renowned cough researchers working at Manchester University NHS Foundation Trust, the Vitalograph VitaloJAK system comprises 4 distinct components, all essential to ensure high quality data:

    • VitaloJAK high fidelity cough monitoring device and test kits
    • Vitalograph Web Portal to collect and manage analysis of cough data
    • VitaloJAK algorithm to remove non-cough sounds
    • Cough Analysis by trained cough analysts including event markers for awake and sleep periods

      Technical Specifications

      Specifications:

      • Essential Performance: Recording audio inputs from the Cough Sensor and Microphone
      • Size: 78mm x 108mm x 32mm (device)
      • Weight: 240g – device with battery pack
      • QA/GMP Standards: EN ISO 13485, SOR/98-282 & FDA 21 CFR 820
        Power Supply: 1 x Battery Pack containing
      • 3 x AA Alkaline Batteries.
      • USB powered during configuration/download 5V/500mA (custom cable).
      • Memory Internal Memory: 32GB sufficient for 10 days of 24 hour recordings.
      • SD Card, Size: min 4GB sufficient for 24 hour recording. Additional recording periods can be configured.
      • Communications USB 2.0/3.0 for data download and device configuration (custom cable).
      • SD Card (Optional)
      • Sampling Rate: 8kHz
      • Write speed: 20 MB/sec
      • User Interface LCD – 1.77”
      • 4 button keypad for configuration and event marking
      • On/off key switch

      Videos
      Brochures/Manuals

      Coming Soon

      Warranty


      5 Year Warranty
