Witty TAB- LED Display

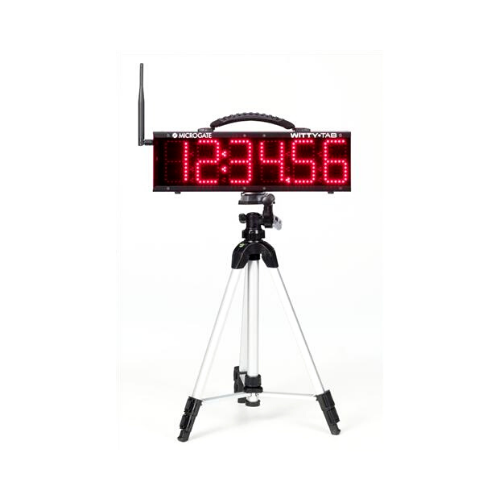

WITTY TAB - LED Display Board
The WITTY TAB is the ideal choice for anyone seeking a multi-capable, lightweight, easily transportable and user-friendly display board.
Measuring 13x41.5x6 cm, the board is equipped with a Led dot matrix displaying 6 numeric digits of 7 segments each (10 x 5 Leds), and a sensor allowing automatic adjustment of the brightness level to suit the ambient light conditions. Brightness can also be controlled manually.
The 2 lead storage batteries guarantee stand-alone operation for at least 10 hours without the need for a connection to the a.c. mains supply.
The WITTY TAB display board has an internal timer and comes complete with a radio transceiver able to communicate with Witty photocells: as the athlete passes, the photocell transmits the pertinent signal (start/lap/stop) to the board by radio. The transmission range is 150 metres under standard conditions.
The WITTY TAB display board can be used in 2 different modes:
• On its own, in combination with Witty photocells only; in this mode, times are simply displayed, without being saved for subsequent computer analysis
• In combination with the Witty timer; pulses transmitted by the photocells are received by the board and by the timer independently, but in this case, with the timer function, data can be saved and stored for analysis subsequently on a computer using the WittyManager software package
The WITTY TAB is equipped with a library of internal programs, designed to meet the many and various timing requirements connected with athlete assessment and performance monitoring.
- P0 Start, Stop Basic timing with auto reset after 5 seconds
- P1 Start, Lap1, Stop Basic timing with 1 intermediate time
- P2 Start, Lap1, Lap2, Stop Basic timing with 2 intermediate times
- P3 Speed Speed measurement based upon any length between two photocells
- P4 Lap Speed Lap speed measurement with one photocell
- P5 Start, LapN, Stop Basic timing with n intermediate times and configurable display time
- P6 Continuous Timing Continuous timing, configurable "dead time"
- P7 Starting System Start and Stop with reaction time at start
- P8 Event Counter Counter increasing automatically with each impulse
- P9 Parallel Event Counter Two counters (left and right) for two photocells
- P10 Date and Time Displays date and time
- P11 Time Time display
- P97 LED Segments Test Checks that the LEDs work correctly
- P98 Photocell Radio Signal Test Checks the correct radio transmission functioning
- P99 Parameter Configuration Configuration of the brightness, radio channel and date & time parameters
SKU: WITTYTAB
Shipping calculated at checkout.
