Witty Wireless Timing System (2 Gates)

Practical & Precise the Witty System includes all the accessories necessary to immediately start a training session.

SKU: WITTY

Shipping calculated at checkout.

Request Quote

Description
Technical Specifications
Videos
Brochures/Manuals
Warranty
Description

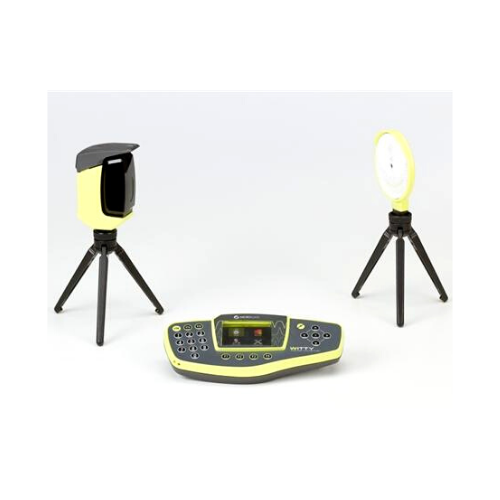

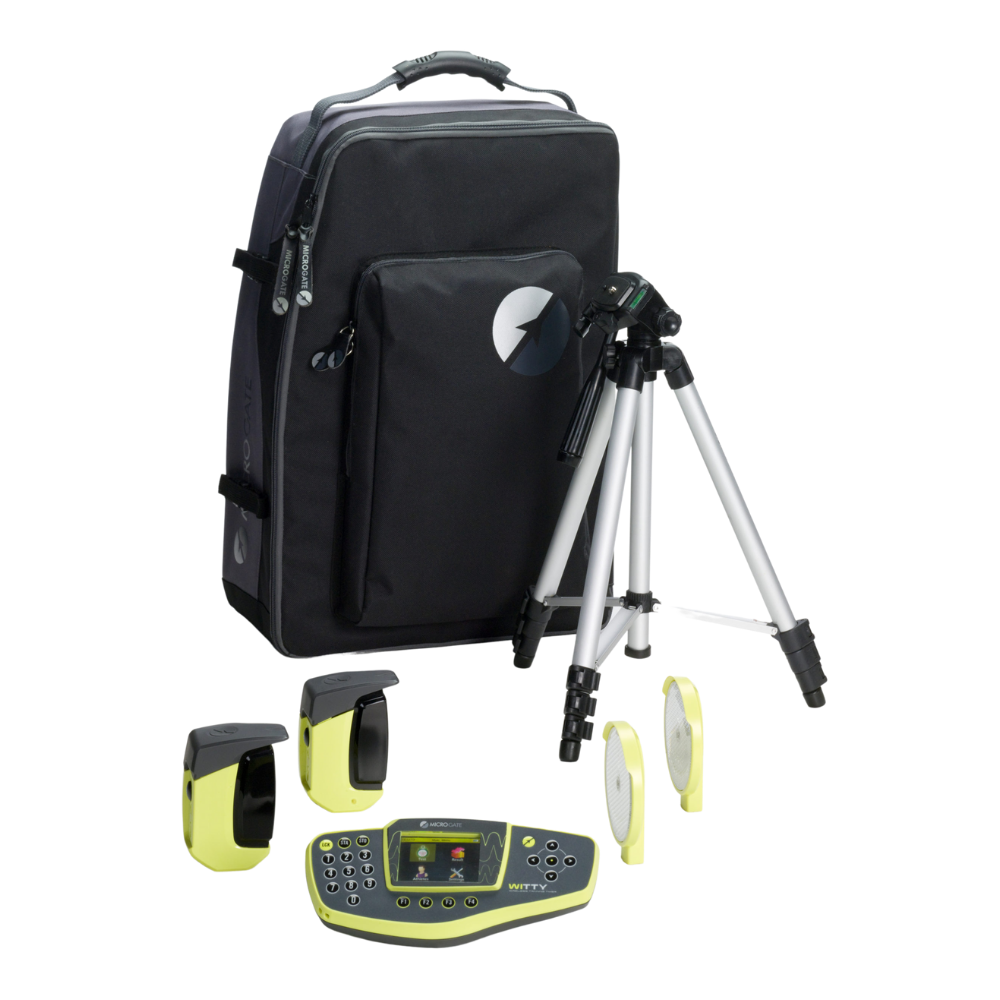

Witty Timing System Includes:

  • 1x Witty Timer
  • 2x Wireless Photocells
  • 2x Reflectors
  • 4x Telescopic Tripods
  • 1x Battery Charger (charges the two photocells and timer simultaneously)
  • 4x USB Cable

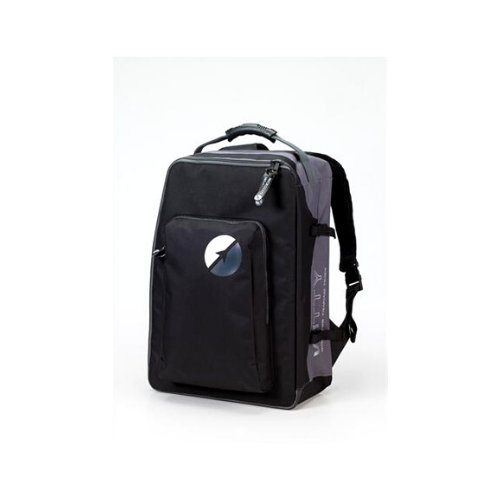

  • 1x backpack for transport with safety padding (contains all the components of the Kit, including accessories)
  • 1x Witty Manager software

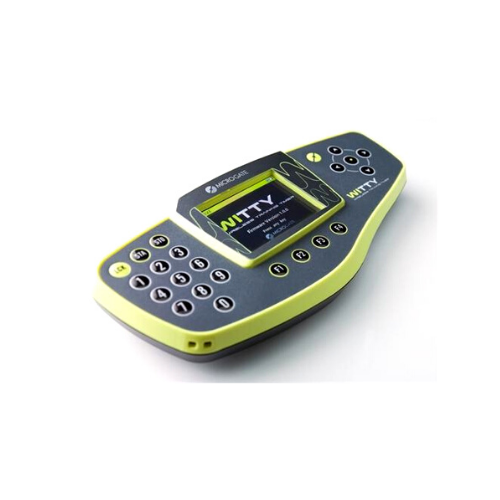

The Chronometer Witty Timer
The compact size, ergonomic shape, and innovative design make the Witty timer practical and easy to use. Graphical icons and on-screen instructions on its color display ensure user-friendliness and ease of use. With 8 different radio frequencies to choose from, it is possible to work simultaneously with several Witty timing systems (timer and photocells) in the same training area. Various preconfigured test types are available (single tests, group tests, in-line tests, go & return, counter, etc.), plus the user can also create customized test protocols directly on the timer. Witty stores and displays all times which can then be downloaded into the Witty Manager software.

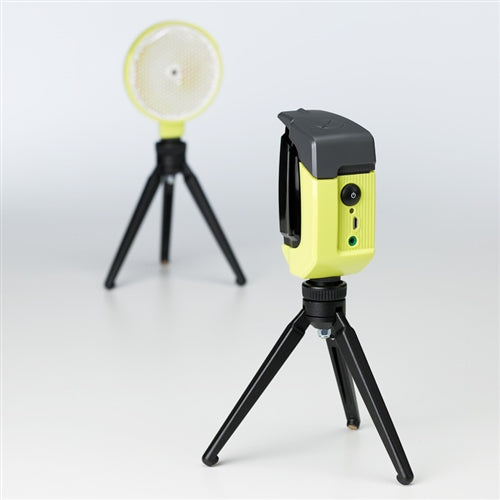

Photocells Witty Gate
Due to the integrated transmission system, which has a range of 150 meters, the photocells are highly reliable. Redundant radio transmission ensures that the data acquired is transmitted to the timer with the maximum precision (±0.4 thousandths of a second) even if the signal is disturbed. The Witty timer remotely recognizes the photocell ID number, so the user can easily set the signal type on the photocell: start, stop, and intermediate times.


Double Photocells
It is also possible to use the Witty System with double photocells, i.e. one on top of the other so that only the simultaneous interruption of both photocells generates a signal. This system ensures that the photocells are interrupted by the chest and not by the athlete’s leading arm. It is also possible to use an unlimited number of photocells to allow intermediate times.

Witty Manager Software

Witty Manager is a PC software for MS Windows (XP Sp3, Vista, Win7, Win8) for managing the trials timed with Witty, displaying rankings, graphs, histories, etc. The main functions are:

  • Managing Athletes' Personal Data including pictures and divided into groups of categories
  • Managing the Start Lists
  • Creating Customized Test definitions
  • Downloading data from Witty and displaying Results in highly configurable tables and graphs
  • Updating the Witty and photocell firmware


Witty Manager Software - ATHLETES
In this section athlete profiles can be created and edited. Every profile can contain detailed information (personal data, notes, pictures, etc.). In addition, it is possible to create 'start lists' so that when transferring data to Witty not only the athletes' names and information are sent, but also in the exact order of athletes performing the tests. The lists can be used to divide a large athletes' personal database into groups (e.g. squads).

Witty Manager Software - TEST
The main function of this software section is to define customized tests to be then downloaded to the Witty Timer. There are 3 main test types: Basic, Multistart, and Counter. Basic: this test is usually executed with one person after the other, allowing to carry out most of the tests. Depending on the requirements it is possible to define a Sprint test (straight or circuit, with or without intermediate times), Go & Back(multiple runs from one point to another or with more points), as well as Shuttle with recovery (if a monitored recovery period is needed between one run and another). Multistart: This option is selected if, for example, because of the test length, it is necessary to have the following athlete start before the first has finished the test. Counter: This test type is useful to verify how many repetitions of a given action an athlete can execute within a certain amount of time, or, vice versa, how much time an athlete needs to carry out a set number of repetitions.

Witty Manager Software - RESULTS
In this section the results of previously performed tests can be viewed. The results can be filtered by the athlete (typing the name of an athlete only the results of tests, in which that person has participated, will be displayed), test type, date, or a combination of these. Once a test is selected and the View mode is entered, the results are displayed in graphical and numerical form, depending on the layout of the predefined or customized Tables. Data can be printed and exported using a one-click option (selecting various tests) or a Report (selecting one test, where the data to be printed or exported can be configured, a logo may be added, etc.).


Optional Accessories:

  • Witty TAB - LED Display
  • Witty SEM - Smart Indicators for Agility & Reactive Testing
  • Witty RFID - Identification Wristband For Automatic Athlete Recognition & Timing

Technical Specifications


Witty Timer - Data Sheet

  • Weight 337g, battery included
  • Dimensions 214 x 100 x 36 mm
  • Operating temperature 0° C/+45°C
  • Unit of time measurement Selectable 1 s – 1/10 s – 1/100 s – 1/1000s Selectable speed m/s – km/h – mph - knots
  • Measurement resolution 4 x 10-5 s (1/25000 s)
  • Display Graphic color TFT display, visible area 59x44 mm, 320x 240 pixel, with backlight adjustment via software
  • Radio module Multi-Frequency Transceiver 433-434MHz
  • Radio transmission Digital FSK transmission; redundant code with information correctness verification and auto-correction
  • Radio frequencies 433.1125 MHz to 434.790 MHz
  • Radio transmission power 10 mW
  • Processing unit Two 32-bit microprocessors
  • Timebase 12 quartz 8 MHz, stability ±10ppm between 0°C and +45°C
  • Power supply Internal polymer lithium battery, external power supply 5VDC
  • Battery charging Integrated intelligent charging device
  • Battery life > 10 hours
  • Keypad 23-key membrane keyboard- Start-Stop keys; Numerical keypad; 4 function keys; 4 arrow keys and selection key; Home key & Key for line blocking
  • Connections MICRO USB type B connector for charging and connecting to a PC; Jack connector for external input

Witty Photocell - Data Sheet

  • Weight 169g, battery included
  • Dimensions 75 x 103 x 48 mm
  • Operating temperature 0° C/+45°C
  • Minimum resolution 0.125 ms
  • Delay with respect to the event 1 ms
  • Optical range 12 m
  • Radio module Multi-Frequency Transceiver 433-434MHz
  • Radio transmission Digital FSK transmission; redundant code with information correctness verification and auto-correction
  • Radio frequencies 433.1125 MHz to 434.790 MHz
  • Radio transmission power 10 mW
  • Impulse transmission accuracy ±0.4 ms
  • Radio transmission range Approx. 150 meters
  • Processing unit 16-bit microprocessor
  • Timebase 8 MHz quartz, stability ±30ppm between 0°C and +45°C
  • Power supply Internal lithium-ion battery, external power supply 5VDC
  • Battery charging Integrated intelligent charging device
  • Battery life > 10 hours
  • Connections MICRO USB type B connector for charging and connecting to a PC; Jack connector for external input connection or double photocells.

Videos
Brochures/Manuals


Coming Soon

Warranty


To view the warranty details for this item, click here
