Key Features:

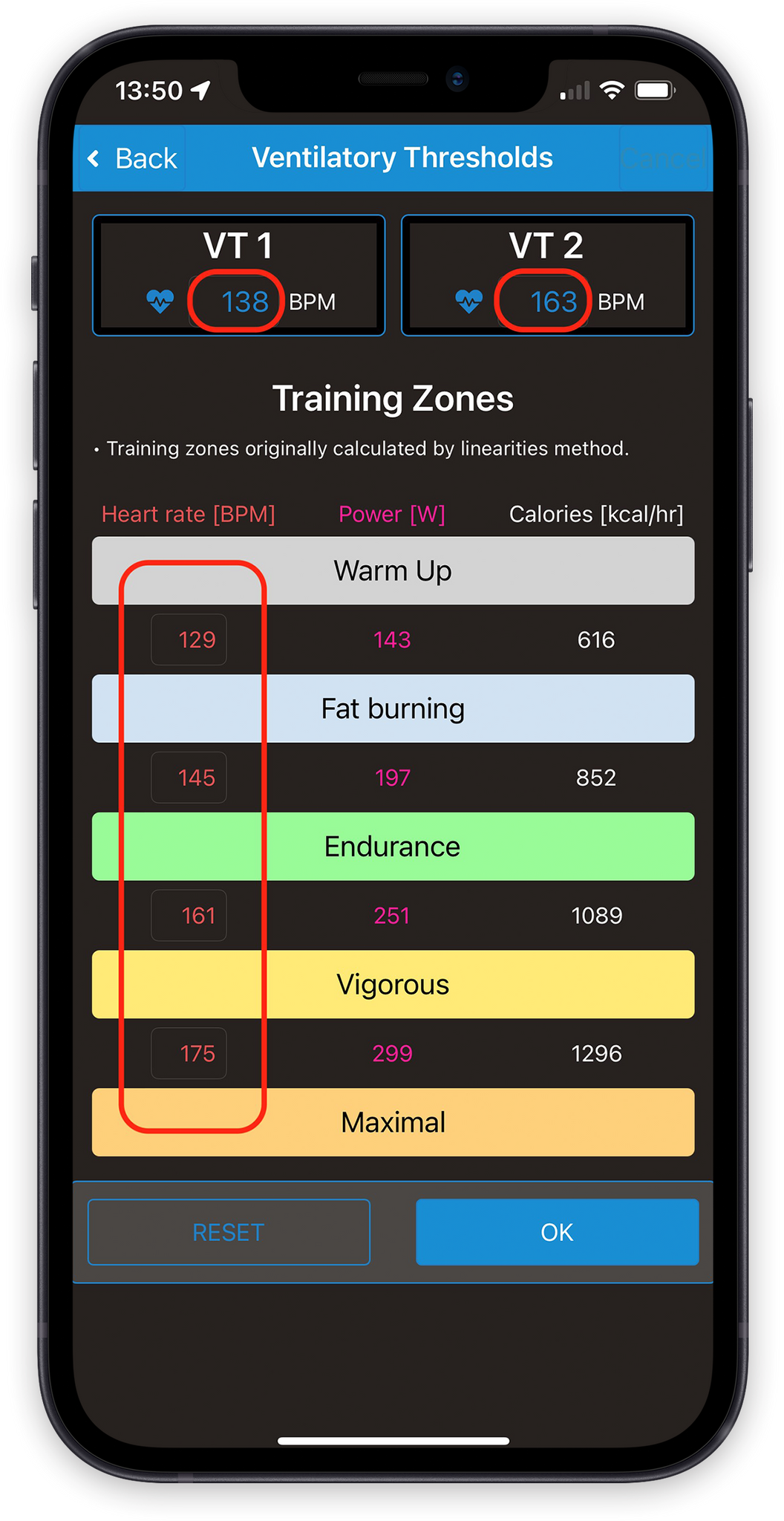

- Performance Testing (VO2 Max + Training Zones)
- Ventilation Thresholds VT1 & VT2
- Resting Metabolic Testing (RMR)
- No backpacks, cables, or hoses.
- Validated against the gold-standard
- Filters ensure sanitation between users.
- Free mobile application for guided testing.

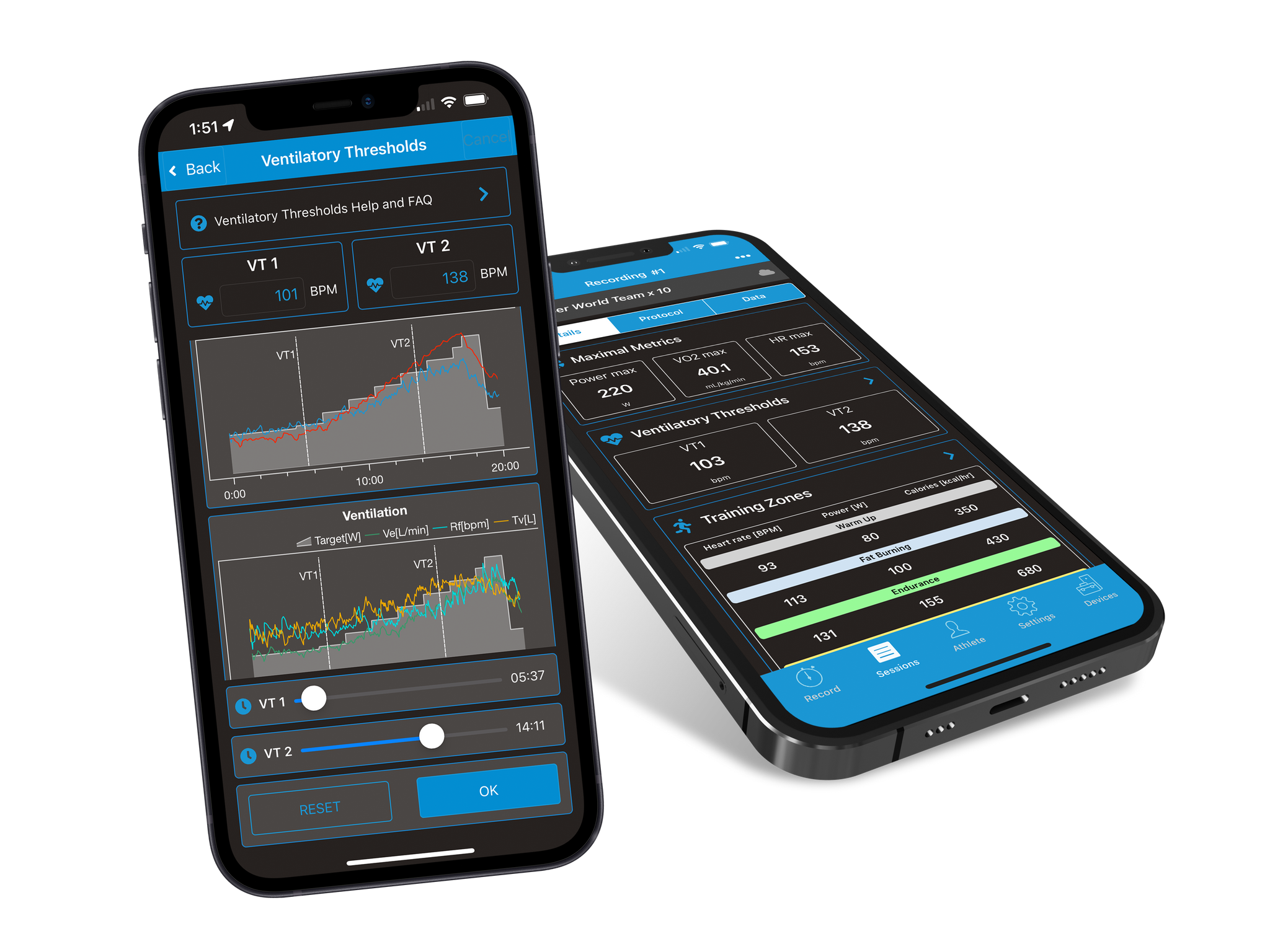

Guided Testing Protocols & Automated Reports

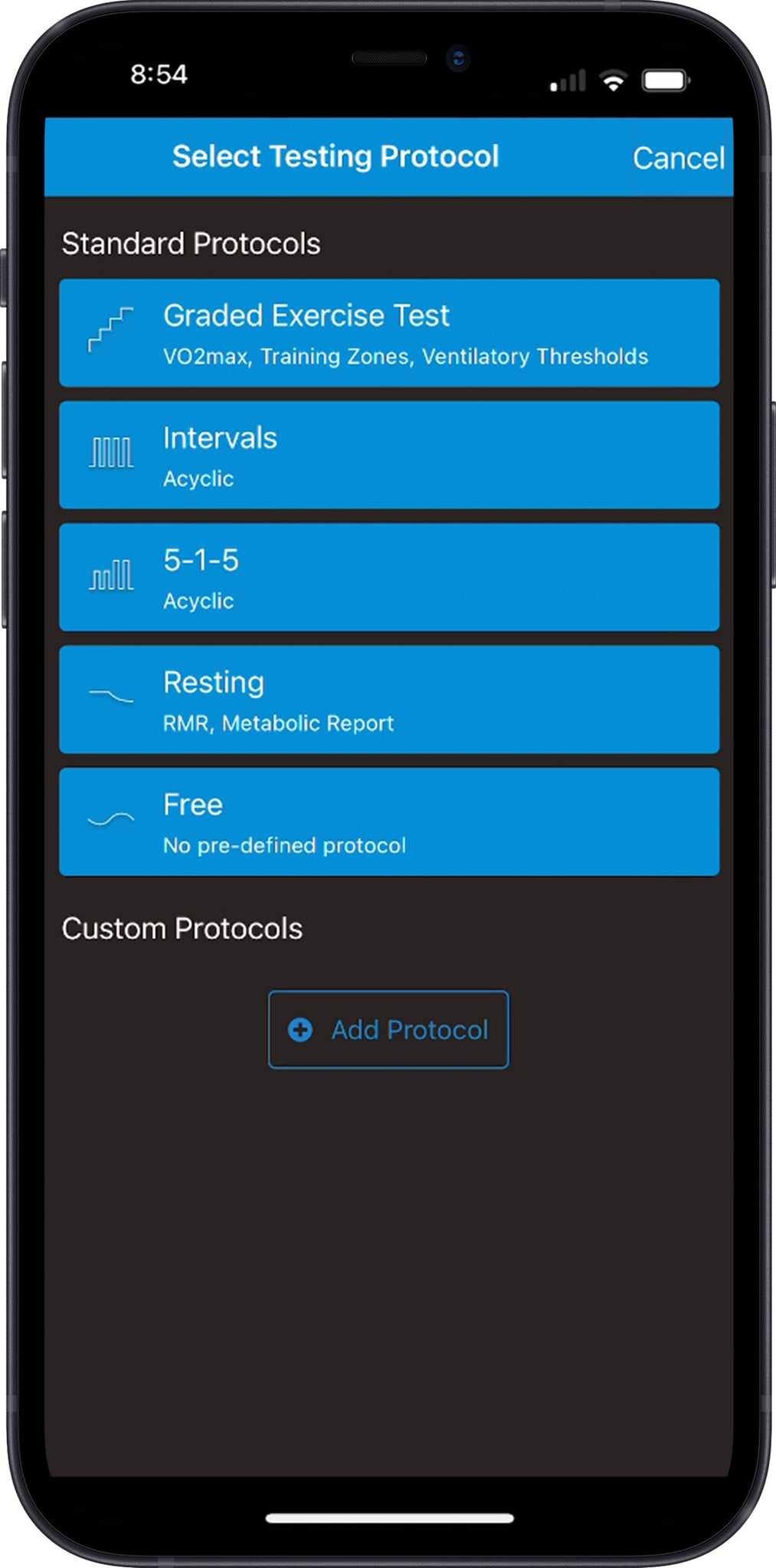

Free phone application guides you through customizable testing protocols.

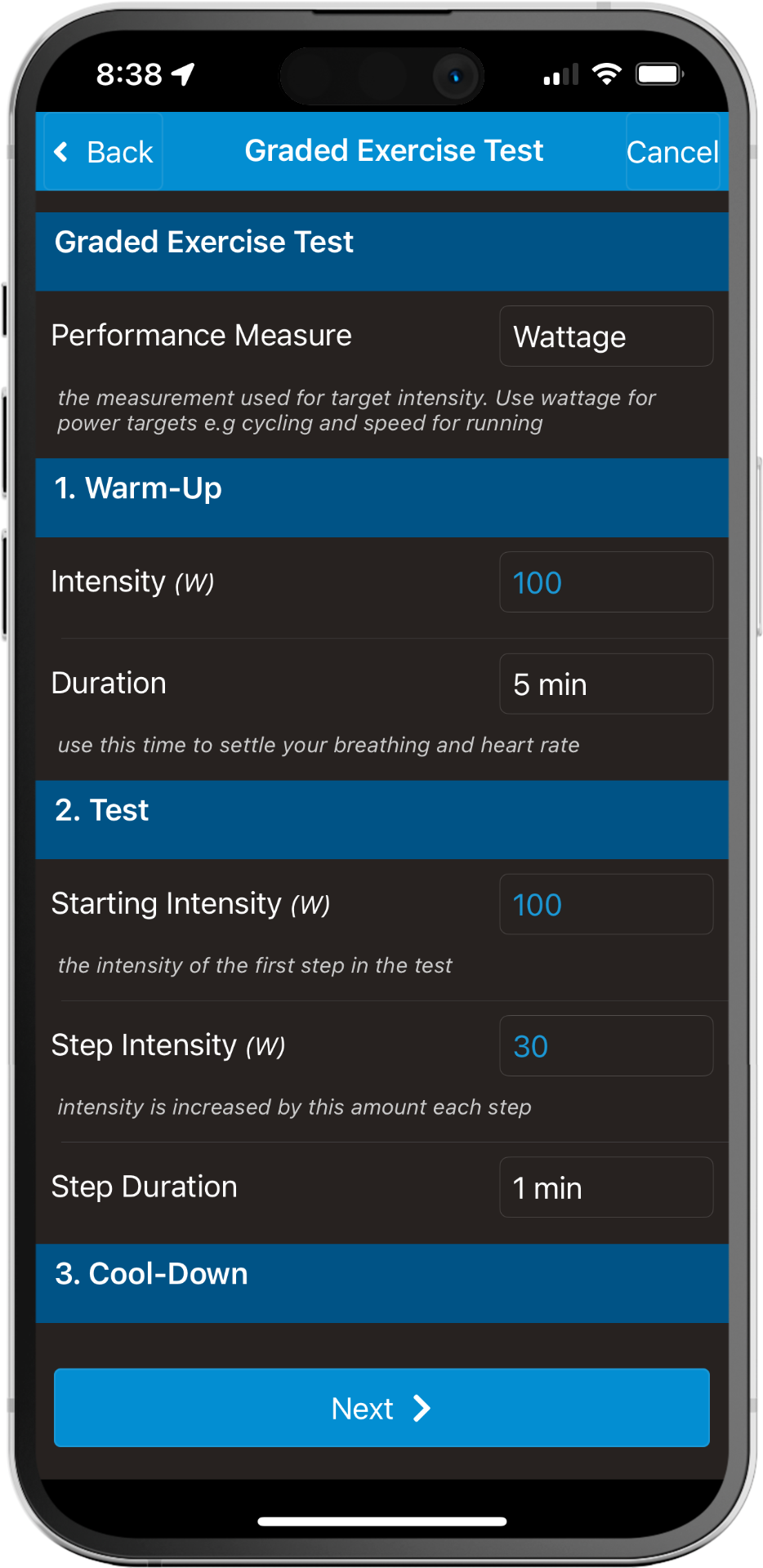

- Graded Step Test

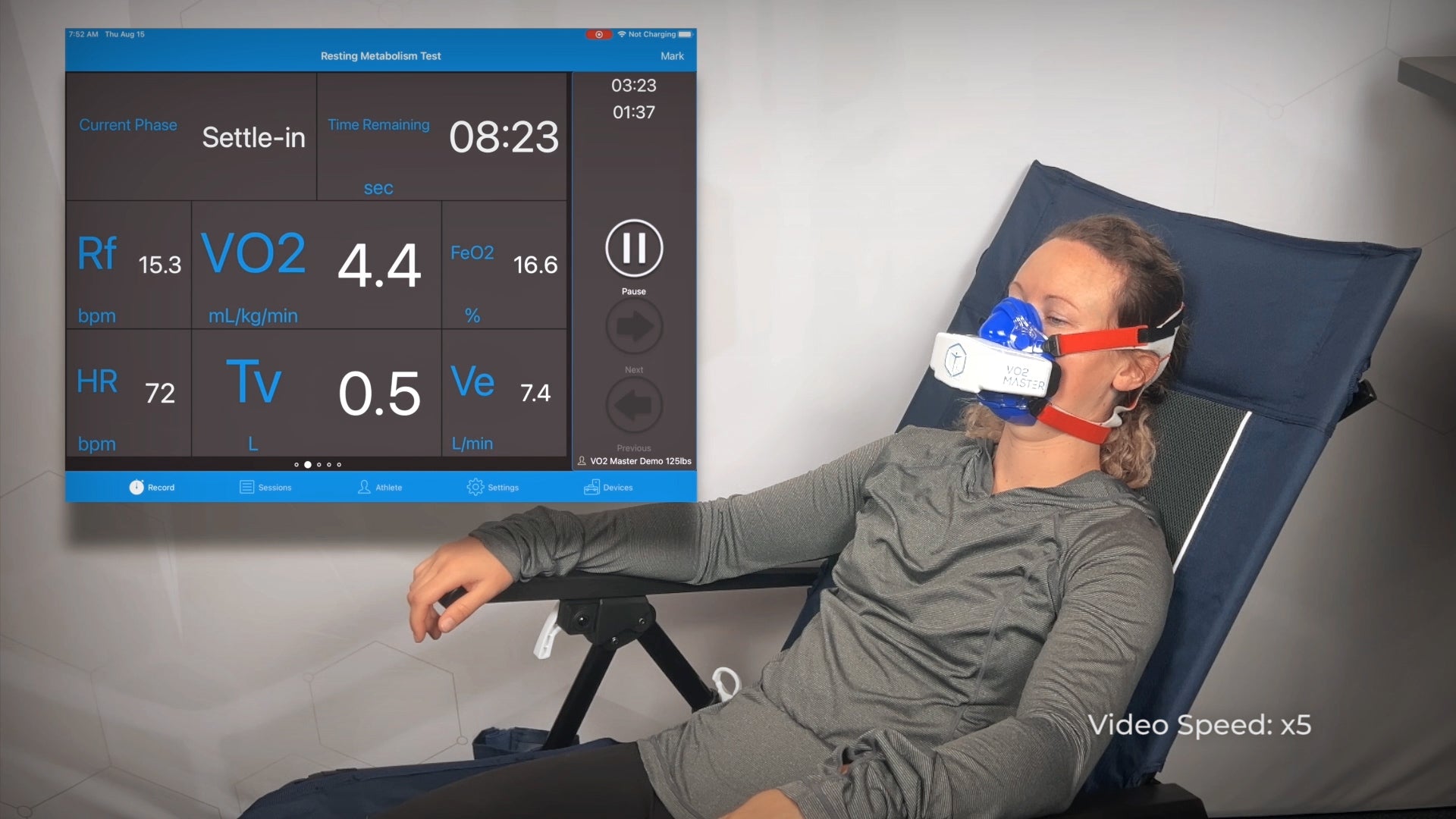

- Resting Metabolic Test
- Intervals
- 5-1-5 Assessment
- "Free" Mode

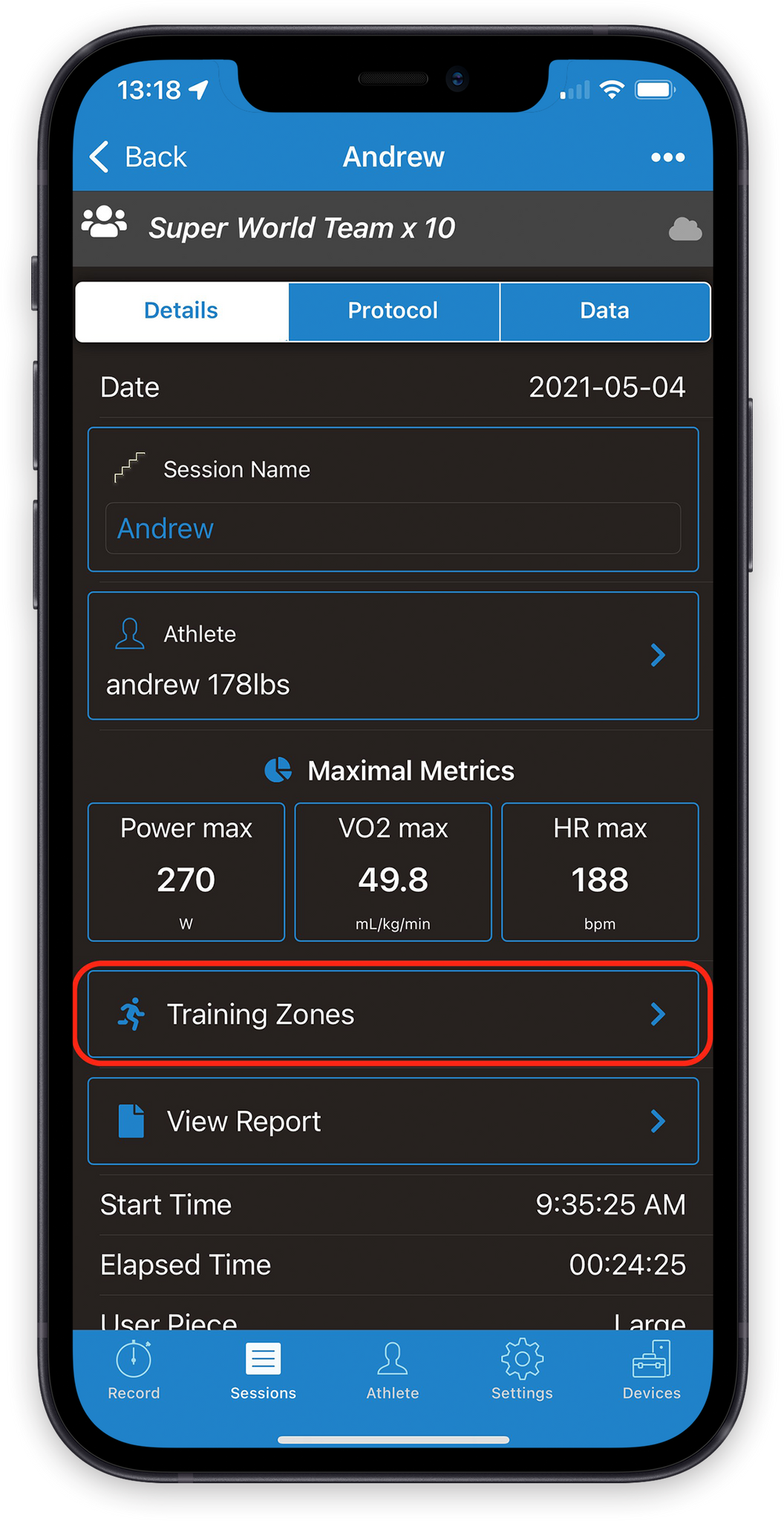

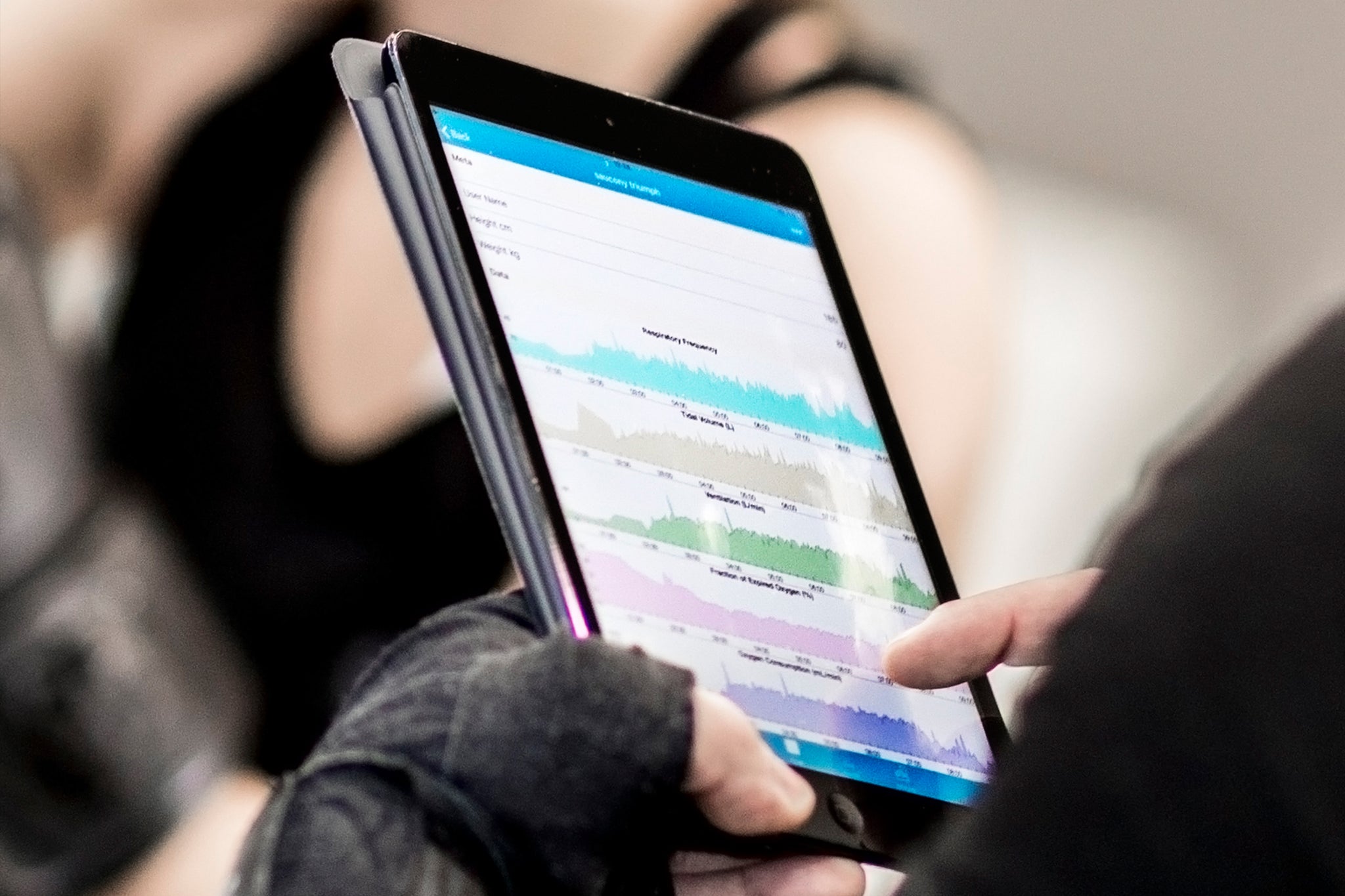

- The mobile application produces print-ready assessment reports that can be shared electronically.
Lab-Grade Accuracy
Superior data response due to the patented direct gas measurement at the mouth.
Shortened sample tubes increase accuracy because the O2 sample is received just after the flow measurement.
Validated against three lung simulators and lab carts.
Same high-quality oxygen and flow sensors found in metabolic carts.
Technical Specifications
Physical Design
- Dimensions 134mm x 92mm x 53mm
- Weight 350g (230g unit, 120g mask)
Sensor Measurements
- O2 Accuracy ± 1%
- Flow Accuracy ± 4%
- Flow Accuracy with Syringe ± 2%
- Flow Sensor Type Differential Pressure
- Oxygen Sensor Type Galvanic Fuel Cell
- Gas Sampling System Passive, pump-less
- Oxygen Sensor Life Approx 12 Months
- Pressure (300-1100 mbar/ 50-110 kPa) ±0.25%
- Humidity (0-99%RH) * ±3%
- Temperature (15-45°C) * ±1°C
Ventilatory Ranges
These ranges are covered by three user pieces; one for RMR, one for CPET, and one for high-flow CPET.
- Ventilation 2-250 Litres per minute
- Tidal Volume 0.25-10 Litres
- Respiratory Frequency 3-80 Breaths per minute
Environmental conditions
- Temperature Range: 17-45o C
- Altitude: Up to 10,000 ft
- Headwind: Headwind decreases accuracy.
- Pressure: 300-1100 mbar (50-110 kPa)
- Humidity: 0-70% Non-Condensing Ambient Air. Avoid testing in the rain. The chart
below specifies the humidity range the analyzer can be used in. For
example, at 17°C the max ambient humidity is 50% Relative Humidity
(RH).
Power Supply
- Battery Type Single AAA
- Battery Life 8 hours +
Right Click To Open In New Tab/Window
VO2 Master Pro Vo2 Max Sample Report
VO2 Master Pro Resting Metabolic Rate Sample Report
VO2 Master Pro Validation & Reliability Study
12 Months Warranty
